Got new Bolt III Today--GPU overclock is modest?

Post Date: 2016-06-30
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
Salangsang View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 13 Jun 2016
Online Status: Offline
Posts: 35 		  Quote Salangsang Quote  Post ReplyReply bullet Topic: Got new Bolt III Today--GPU overclock is modest?
    Posted: 30 Jun 2016 at 6:18pm
Hello! Haven't tested in game yet, but from the looks of things this computer is going to be awesome!

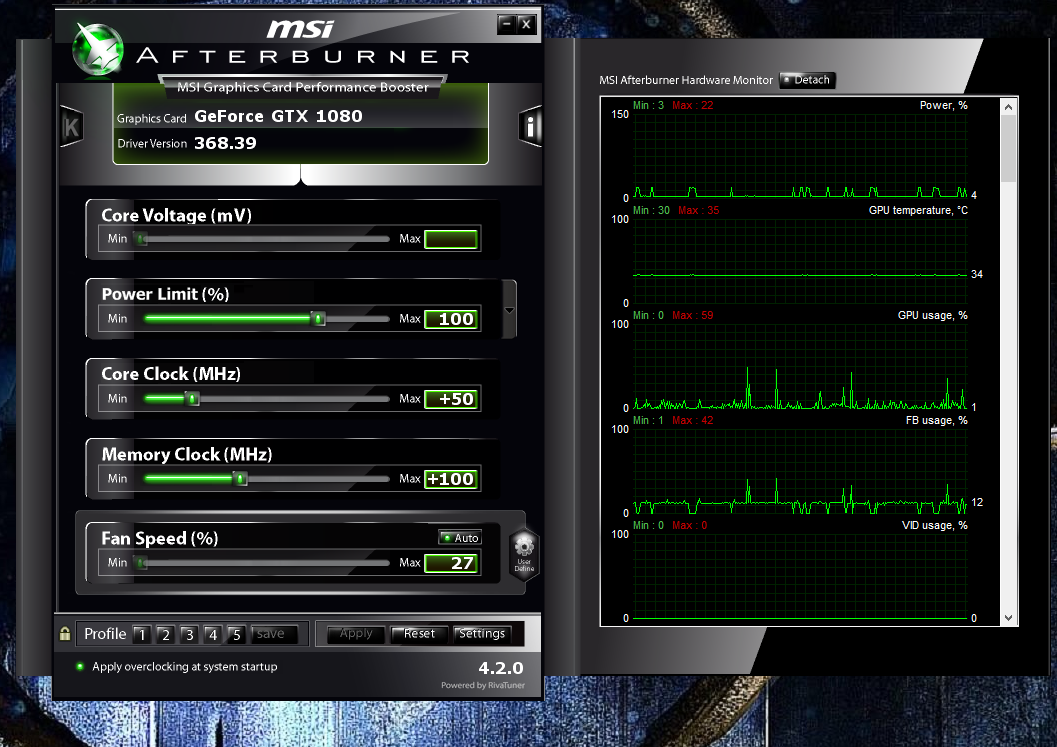

I noticed that the installed GTX 1080's overclock is very conservative: the power limit hasn't been touched, with the core at +50 and memory at +100. The GPU is watercooled, so I am confused as to why it wasn't pushed any farther. Is it the 600 watt PSU?



-- Salangsang

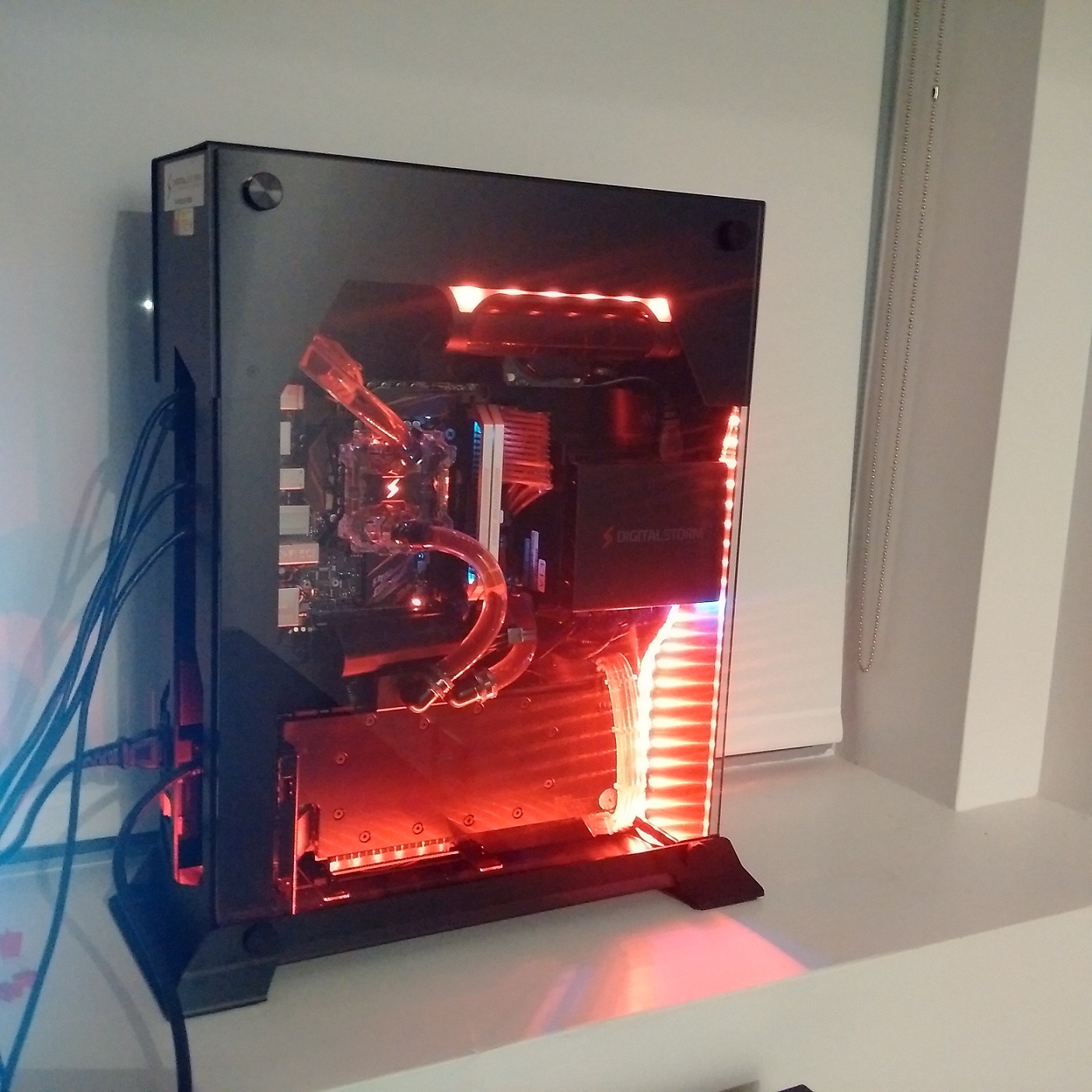

Here is a picture of the system up and running!
Bolt 3:
LC'edIntel i7 6700k @4.6gHz
LC'ed nVidia GTX 1080 @2038mHz
16GB 3000mHz DDR4 Corsair Dominator Platinum
250GB Samsung 850 Evo + 1TB WD Caviar Black
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 8:37pm
Very nice DS does not max out oc on gpu. Also put the gpu underload and see what your temps are.

Nvidia Drivers----AMD Drivers
Back to Top
Salangsang View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 13 Jun 2016
Online Status: Offline
Posts: 35 		  Quote Salangsang Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 8:42pm
Under load temps were sitting at ~46-48 celsius when I pushed clocks down to stock in Heaven. After dialing in +200 to core and +500 to memory, temps stayed ~50. WHen I was actually in game (Battlefront), GPU stayed stable at 55C with the CPU hitting high 60s and low 70's.

Perchance, would you--or anyone--know how to change the LEDs on the reservoir?

-- Salangsang
Bolt 3:
LC'edIntel i7 6700k @4.6gHz
LC'ed nVidia GTX 1080 @2038mHz
16GB 3000mHz DDR4 Corsair Dominator Platinum
250GB Samsung 850 Evo + 1TB WD Caviar Black
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 9:05pm
Your control center software from DS should be able to let you change led and etc.


OK if after playing games for 30 min the max temp was 70c then you got room to push the oc, Here is a guide if you like

Nvidia Drivers----AMD Drivers
Back to Top
 View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 28 Oct 2014
Online Status: Offline
Posts: 1674 		  Quote  Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 10:19pm
Be careful with water cooled systems. You do not want to exceed 60 degrees C in the water loop at the pump (which happens to be immediately following the radiator at the coolest point in your loop).
Bolt II Review (and now some modifications!)

Configuring a Computer
Back to Top
Salangsang View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 13 Jun 2016
Online Status: Offline
Posts: 35 		  Quote Salangsang Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 10:23pm
The Digital Storm software reads the fluid as 38C-- is this the temperature you are talking about aA?

Additionally, I have realized that the CPU Area and GPU area temperatures shown in the DS software are not the actual readings of the parts.
Bolt 3:
LC'edIntel i7 6700k @4.6gHz
LC'ed nVidia GTX 1080 @2038mHz
16GB 3000mHz DDR4 Corsair Dominator Platinum
250GB Samsung 850 Evo + 1TB WD Caviar Black
Back to Top
 View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 28 Oct 2014
Online Status: Offline
Posts: 1674 		  Quote  Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 10:26pm
Yes, the reading in the hardware parts would be done with other software (it would be nice if DS incorporated all of it into one interface). DS reads off of thermal probes they have stuck onto components. Not sure where they have it for the water temp, you may be able to trace the probe if you wanted to open up the case to find out.

Edit: But like I said, the pump is at the coolest point in the loop, so if the water temp reading is below 60, your pump will have water that is no hotter than that, no matter where that reading is coming from.

Edited by  - 30 Jun 2016 at 10:27pm
Bolt II Review (and now some modifications!)

Configuring a Computer
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 10:27pm
Have a look here and get the stuff you need for temps get hwmonitor and see what it reports against DS software.

What makes you think those are not your temps? keep in mind they are reporting the chip's temp, not the rest of the area.

Nvidia Drivers----AMD Drivers
Back to Top
 View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 28 Oct 2014
Online Status: Offline
Posts: 1674 		  Quote  Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 10:30pm
Originally posted by DST4ME

Have a look here and get the stuff you need for temps get hwmonitor and see what it reports against DS software.

What makes you think those are not your temps? keep in mind they are reporting the chip's temp, not the rest of the area.


Probably posted too close together, but DS reads their temps off of thermal probes they stick around the computer, and not from the temperature readings directly from the components.
Bolt II Review (and now some modifications!)

Configuring a Computer
Back to Top
Salangsang View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 13 Jun 2016
Online Status: Offline
Posts: 35 		  Quote Salangsang Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 10:33pm
Thanks to the both of ya.

DST4ME, DS control states GPU area at 31C-- HWMonitor states 35C.

When gaming, HWMon, Afterburner, GPU all show low 50s high 40s readings on GPU. However, DS stays below 40.
Bolt 3:
LC'edIntel i7 6700k @4.6gHz
LC'ed nVidia GTX 1080 @2038mHz
16GB 3000mHz DDR4 Corsair Dominator Platinum
250GB Samsung 850 Evo + 1TB WD Caviar Black
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 30 Jun 2016 at 10:51pm
Ok lets go with afterburner and hw for temps then.

Now when we say gaming we mean at least half an hour continuous.

Nvidia Drivers----AMD Drivers
Back to Top
Xenecus View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 22 Jun 2016
Online Status: Offline
Posts: 97 		  Quote Xenecus Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 8:26am
Originally posted by 

Be careful with water cooled systems. You do not want to exceed 60 degrees C in the water loop at the pump (which happens to be immediately following the radiator at the coolest point in your loop).


Can you explain why?
Velox | i7 6850x @ 4.5Ghz | Asus Rampage V E.10 | Titan X (Pascal) SLI | 32GB DDR4 | Samsung 950 Pro 512 GB | 2x Samsung 850 EVO 1 TB Raid 0 | 1200W AX1200i| H20: HydroLux PRO | Win 10 |
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 8:56am
The pump you are using has a max 60c operating temp plus 60c liquid temp at your coolest point in the loop is kinda of high.

Edited by DST4ME - 06 Sep 2016 at 8:56am

Nvidia Drivers----AMD Drivers
Back to Top
Xenecus View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 22 Jun 2016
Online Status: Offline
Posts: 97 		  Quote Xenecus Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 9:51am
What happens when the temps exceed 60c?
Velox | i7 6850x @ 4.5Ghz | Asus Rampage V E.10 | Titan X (Pascal) SLI | 32GB DDR4 | Samsung 950 Pro 512 GB | 2x Samsung 850 EVO 1 TB Raid 0 | 1200W AX1200i| H20: HydroLux PRO | Win 10 |
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 9:57am
Lets not find out and say we did otherwise one failure will let to another.

Normally when you exceed specifications you will endup with failure of the part.

Edited by DST4ME - 06 Sep 2016 at 9:58am

Nvidia Drivers----AMD Drivers
Back to Top
Xenecus View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 22 Jun 2016
Online Status: Offline
Posts: 97 		  Quote Xenecus Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 10:02am
Well the reason I as is because it won't take much to exceed 60C temperatures on CPU/GPU, i'm not sure how those temps translates into pump temps... I would think it's close to that....
Velox | i7 6850x @ 4.5Ghz | Asus Rampage V E.10 | Titan X (Pascal) SLI | 32GB DDR4 | Samsung 950 Pro 512 GB | 2x Samsung 850 EVO 1 TB Raid 0 | 1200W AX1200i| H20: HydroLux PRO | Win 10 |
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 10:09am
No cpu/gpu temps are different than your loop temps.

Edited by DST4ME - 06 Sep 2016 at 10:09am

Nvidia Drivers----AMD Drivers
Back to Top
Alex View Drop Down
Admin Group
Admin Group

Digital Storm Supervisor


Joined: 04 Jun 2012
Online Status: Offline
Posts: 16314 		  Quote Alex Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 2:14pm
Are you sure you're not reading them as Fahrenheit versus Celcius?
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 2:27pm
Who are you asking that Alex? me or Xenecus?

Nvidia Drivers----AMD Drivers
Back to Top
Alex View Drop Down
Admin Group
Admin Group

Digital Storm Supervisor


Joined: 04 Jun 2012
Online Status: Offline
Posts: 16314 		  Quote Alex Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 2:34pm
The customer.
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 06 Sep 2016 at 2:41pm
If you mean the op then he stopped responding like 2 months ago.

Edited by DST4ME - 06 Sep 2016 at 2:41pm

Nvidia Drivers----AMD Drivers
Back to Top
