Monitors for Flight Sims

Post Date: 2015-11-23

 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
m303803 View Drop Down
Newbie
Newbie


Joined: 08 Apr 2014
Online Status: Offline
Posts: 7
  Quote m303803 Quote  Post ReplyReply bullet Topic: Monitors for Flight Sims
    Posted: 23 Nov 2015 at 1:56am
So I have to admit I know very little technically about what the differences in specifications actually mean to performance for almost anything related to displays. My experience in recent years has basically been plug and play and hope for the best, which has been enough to have great fun since I bought my ODE V3 last year. But now since I just sold a house and got a windfall of cash, I want to get serious with my home made flight sim. I'm planning on working to get the three-monitor setup I've been wanting since I bought this machine, and my new house has a workshop which means I will have the space to build a good structure to make this a reality. So - looking for insight.

I play MS Flight Sim FSX acceleration basically exclusively on my machine. I plan to upgrade to Prepar3d next year. I fly on Boston Virtual ATC. And I am wondering how I go about setting up 3 screens, one center, one left, on right with my present machine.

What cords do i need ?

Will The TVs i'm thinking of buying work ? it looks like somehow i would need to end up with 3 HDMI ends on the TV side, yet I don't see 3 HDMI outputs on my computer...

Link and background info on my computer below. THANK YOU!

http://www.vizio.com/e320ib2.html

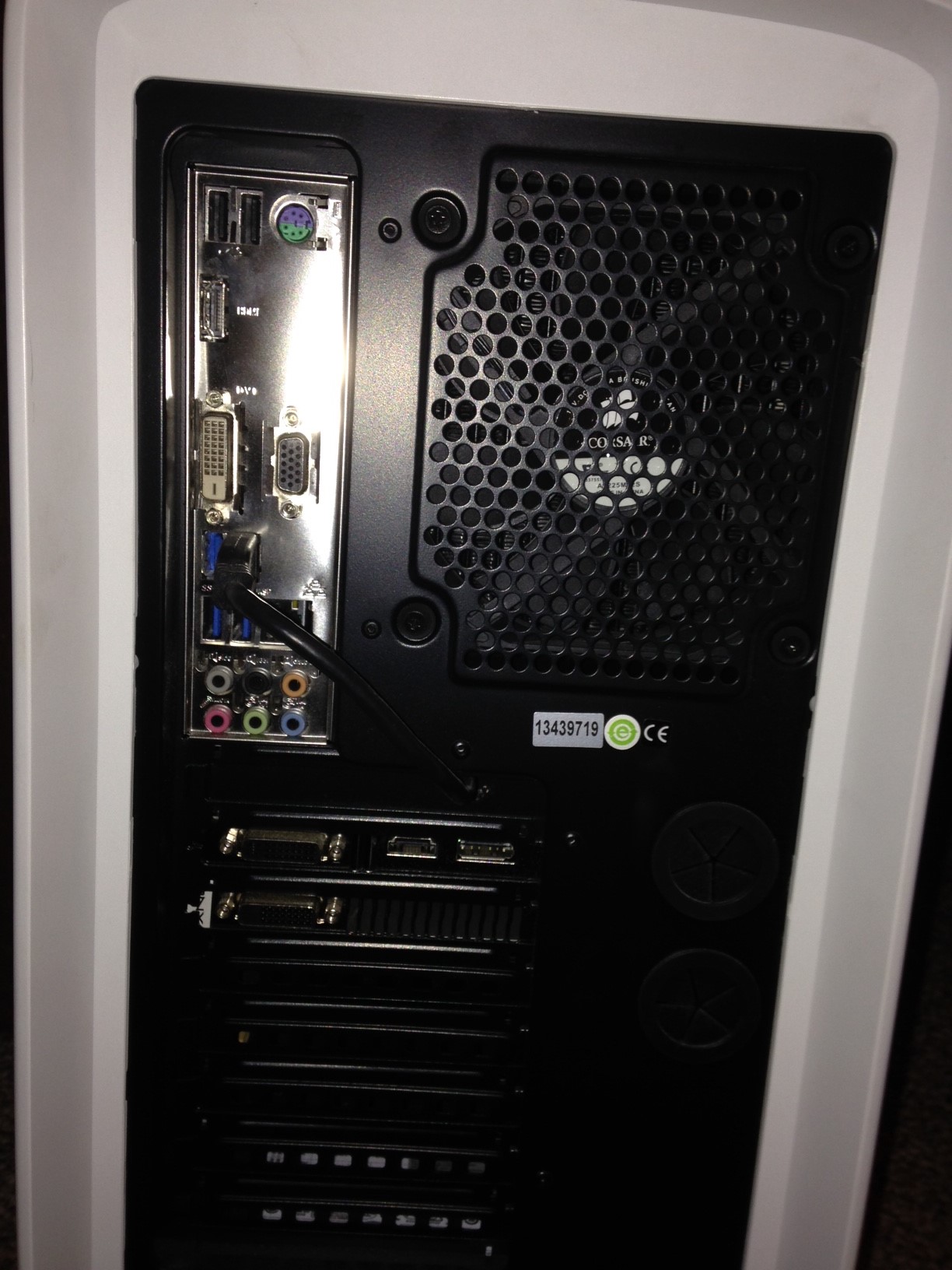

the back of my computer has these types of outputs:


Chassis Model: Special Deal Hot Seller - Digital Storm ODE V3
Exterior Finish: - Standard Factory Finish
Trim Accents: - Standard Factory Finish
Processor: Intel Core i7 4770K 3.50 GHz (Unlocked CPU) (Quad Core)
Motherboard: ASUS Z87-C (Intel Z87 Chipset)
System Memory: 16GB DDR3 1600MHz Corsair Vengeance
Power Supply: 750W Corsair CX750M
Expansion Bay: - No Thanks
Optical Drive: DVD-R/RW/CD-R/RW (DVD Writer 24x / CD-Writer 48x)
Storage Set 1: 1x SSD (120GB Samsung 840 EVO)
Storage Set 2: 1x Storage (1TB Seagate)
Storage Set 3: - No Thanks
RAID Config: - No Thanks
RAID Card: - No Thanks
Internet Access: High Speed Network Port (Supports High-Speed Cable / DSL / Network Connections)
Graphics Card(s): 1x NVIDIA GeForce GTX 780 3GB (Includes PhysX)
Sound Card: Integrated Motherboard Audio
HPC Processor: - No Thanks
Extreme Cooling: H20: Stage 2: Digital Storm Vortex 120mm Radiator Liquid CPU Cooler (High-Performance Edition)
H20 Tube Color: - Not Applicable, I do not have a FrostChill or Sub-Zero LCS Cooling System Selected
Chassis Fans: Standard Factory Chassis Fans
Internal Lighting: - No Thanks
Airflow Control: - No Thanks
Chassis Mods: - No Thanks
Noise Reduction: - No Thanks
LaserMark: - No Thanks
CPU Boost: Stage 1: Overclock CPU 4.0GHz to 4.4GHz
Graphics Boost: - No Thanks, Please do not overclock my video card(s)
Memory Boost: - No Thanks, Please do not overclock my memory
OS Boost: Yes, Disable and tweak all of the non-crucial services on the operating system
Windows OS: Microsoft Windows 7 Professional (64-Bit Edition)
Recovery Tools: Windows Recovery Toolkit (Bundled with Windows CD)
Back to Top
Snaike View Drop Down
Moderator Group
Moderator Group

Just a dude trying to keep the spam away
Email address used to purchase matched with forums account email.

Joined: 23 Jan 2014
Online Status: Offline
Posts: 9462
  Quote Snaike Quote  Post ReplyReply bullet Posted: 23 Nov 2015 at 2:27am
Hey M303803...

Moved your questions to your own thread so they won't get buried. Besides, there's a regular or two here that just love their flight sims and want them to get a chance to get you going in the right direction...
Back to Top
bprat22 View Drop Down
DS ELITE
DS ELITE

DigitalStorm East -- (Unofficially!)
Email address used to purchase matched with forums account email.

Joined: 08 Jun 2011
Online Status: Offline
Posts: 20391
  Quote bprat22 Quote  Post ReplyReply bullet Posted: 23 Nov 2015 at 2:48am
The TVs you listed are 1366x768 resolution. Unless you're going for just the 32" size I would rather get 24/27" monitors at 1920x1080p.   Much better colors and resolution.

Your single 780 will drive the 3 TVs or monitors but performance will suffer as you add the extra screens. More work for the video card.

For connections, you'd need to get adapters like an HDMI to DVI or HDMI to Displyport.

Hope this helps.
Back to Top
db188 View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 29 Jul 2014
Online Status: Offline
Posts: 2115
  Quote db188 Quote  Post ReplyReply bullet Posted: 23 Nov 2015 at 1:49pm
you've got: 1xdual link DVI-I, 1xdual link DVI-D, 1xHDMI and 1xDP connections on your vid card.  you would need: 2xdual link DVI>HDMI, 1xDP>HDMI and 1xHDMI>HDMI adapters if connecting 4 monitors/tv's.
Aventum 3
I7-6700K
Gigabyte G1 Z170X Gaming GT
16GB Corsair Dominator 3000MHz
Corsair Hx1000i 1000W
Samsung M.2 980 Pro 2TB;Samsung 850 EVO 1TB
MSI RTX 3080 Ventus OC 10G LHR
Gigabyte M28U 4K
