A question for all the liquid cooling experts out there.

I am looking for opinions on a good flow meter for a project I am doing on a test bench.

What liquid flow meters have worked well for you and why?

Thank you in advance for your input.
"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 19 Dec 2010 at 2:21pm
Its been a few years for me but aqua computer user to have a good one.

Nvidia Drivers----AMD Drivers
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 20 Dec 2010 at 5:48pm
what is your price range?   here is a decent one.
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 21 Dec 2010 at 4:43am
Thank you DST4ME for the info.

And Justin, Thank you for the link.  That is within my price range.  Do you have a similiar flow meter on your test bench?




Edited by rholyrag - 21 Dec 2010 at 4:57am
"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 21 Dec 2010 at 9:07am
Originally posted by rholyrag

Thank you DST4ME for the info.

And Justin, Thank you for the link.  That is within my price range.  Do you have a similiar flow meter on your test bench?


You should know me better... I made my own.. LOL   If I was to buy one, I would get that one though. Big%20Smile
What kind of crazy stuff are you concocting to do?
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 22 Dec 2010 at 9:29am
 lol..my fault, I must of had a senior moment and forgot who I was talking to, of course you made your own...Big%20Smile.  And thank you for the recommendation "if you were to buy one, it would be that one".


Originally posted by justin.kerr

What kind of crazy stuff are you concocting to do?

lol..let's just say I am doing some home schooling.


Edited by rholyrag - 22 Dec 2010 at 9:31am
"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 22 Dec 2010 at 9:54am
good, glad to hear you are doing some of your own testing.. post up pics, results, ect, always good to see what others create!

And if you need any help, feel free to ask. Big%20Smile
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 22 Dec 2010 at 10:36am
Thank you, and I will.


"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 25 Feb 2011 at 3:30pm

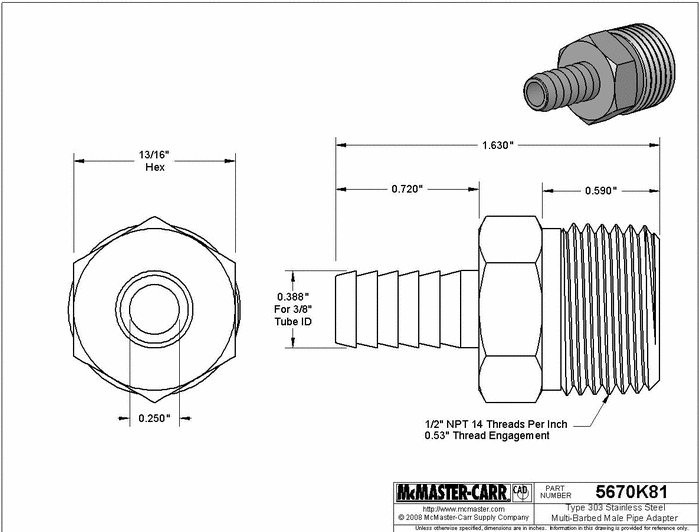

Hey Justin, Sidewinder computers recommended www.mcmaster.com for the MNPT adaptor fittings for the flow meter.  What are your thoughts?  Do you know of a better place?
"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 25 Feb 2011 at 4:00pm
your using 3/8" ID tube??
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 25 Feb 2011 at 4:02pm
Yes
"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 25 Feb 2011 at 4:14pm
yes, then that will work fine, why sch small hose?
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 25 Feb 2011 at 4:32pm

I thought the size of hose didn't effect performance...Big%20SmileLOL?  What size hose do you use in the drunkin snooki, oops I mean drunkin monkey...Big%20Smile?



"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 25 Feb 2011 at 6:53pm
LOLBig%20SmileI run 1/2" ID on all my stuff.
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 27 Feb 2011 at 5:14am
Hey thats good to know, thanks for the info.  I will have to try that next on the test bench.
"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 06 Mar 2011 at 6:49pm

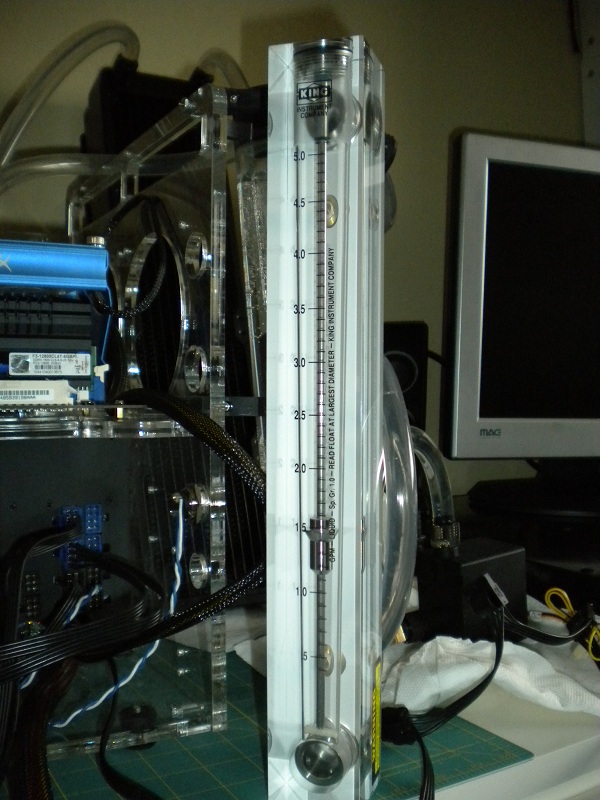

First Test:


CPU Loop

EK 400 Advanced Res > EK DCP 4.0 Pump > Flow Meter > RX480 Rad > EK Supreme HF Block


Just in under 1.5 GPM.

Second Test::

EK 400 Advanced Res > EK DCP 4.0 Pump >  RX480 Rad > Flow Meter > EK Supreme HF Block

Dropped a bit to about 1.4 GPM.


Edited by rholyrag - 06 Mar 2011 at 6:56pm
"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 21 Mar 2011 at 1:07pm

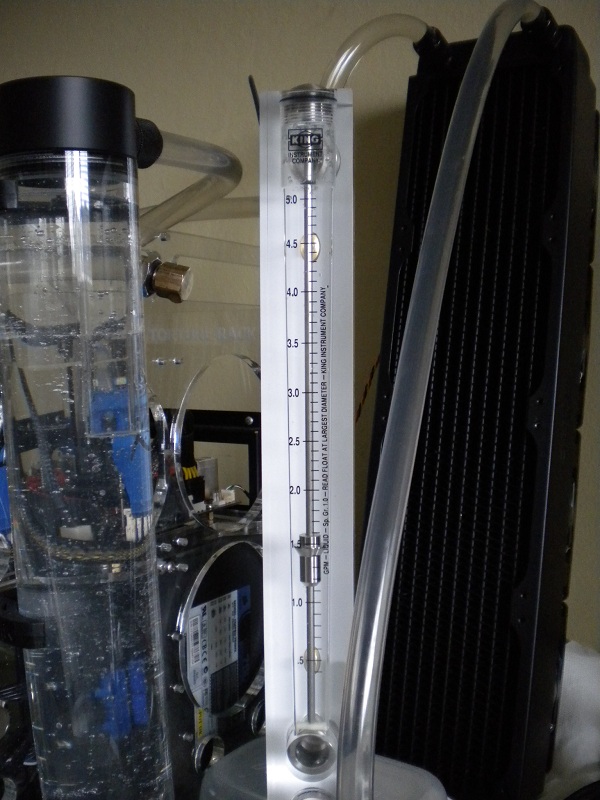

CPU Loop

EK 400 Advanced Res > EK DCP 4.0 Pump > RX480 Rad > RX360 Rad > Flow Meter > EK Supreme HF Block.  Bad picture, but the GPM's with dual radiator and single pump dropped to 1.375GPM.


Dual radiator and dual pump.  Increased flow to 1.8GPM.

EK 400 Advanced Res > EK DCP 4.0 Pump > RX480 Rad > EK DCP 4.0 Pump > RX360 Rad > Flow Meter > EK Supreme HF Block.


Edited by rholyrag - 21 Mar 2011 at 1:10pm
"What we do in life echoes in eternity" - Maximus from Gladiator
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 22 Mar 2011 at 9:49am
1.8GPM very nice. Pumps are nice and quiet, have redundancy if one fails,  what a great combo.
Adding more radiators usually has very little effect on flow, unless they are the Black Ice stuff.
Flow may improve slightly when all the air is out. lol Big%20Smile
which plate are you using on the water block?


Edited by justin.kerr - 22 Mar 2011 at 9:50am
Back to Top
rholyrag View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 17 Oct 2009
Online Status: Offline
Posts: 841 		  Quote rholyrag Quote  Post ReplyReply bullet Posted: 22 Mar 2011 at 12:14pm
I have only tested the stock plate so far.  The plan is to test each plate to see which one gets the best results.  Which plate have you found works the best, or did you make your own out of the blank plate..Big%20Smile?

You are right, the pumps are nice and quiet.  You recommended the pump a while ago when I asked you what pumps you were using in the drunken monkey.  Great recommendation, thanks again..Big%20Smile.
