I have a standard GTX 480 that I ordered in a system that DS shipped to me a few months ago.

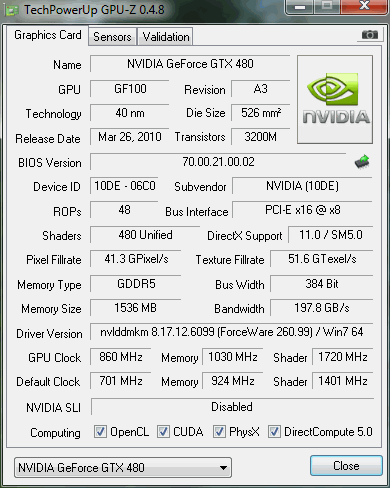

Here is the issue. I have seen a few individuals that have posted 900+ on the CoreClock of this card and I can't seem to get above 860/1720/2060 and keep it stable. I know each card has it's own limitations, but I would like input as to things I have not yet thought of to increase this setting.

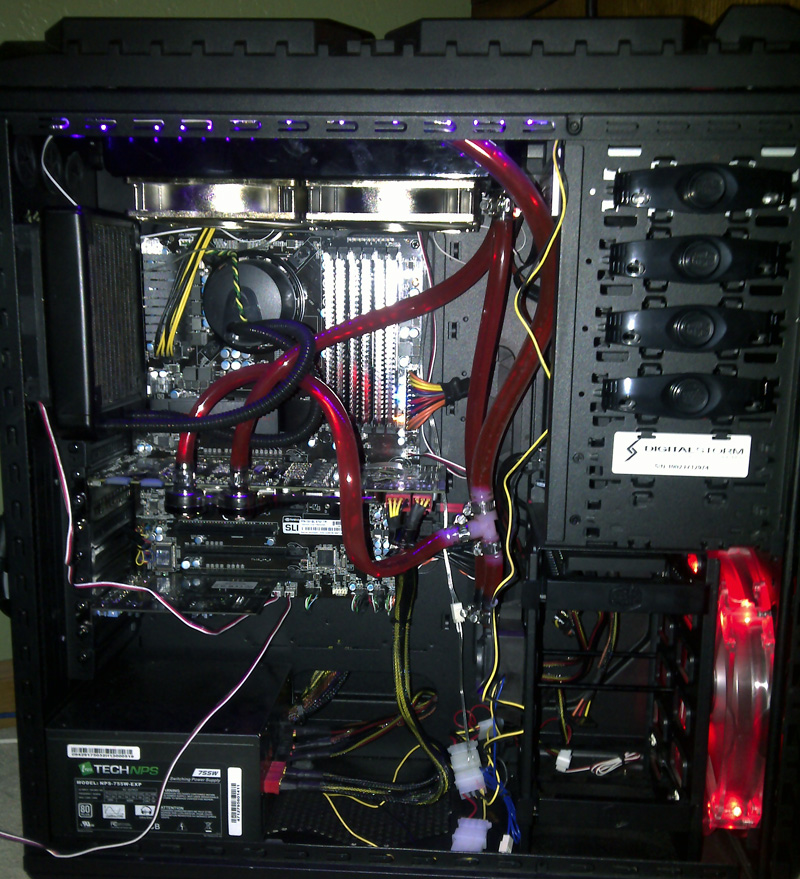

1. I purchased the Danger Den GTX 480 nickle plated water block
2. I put Black Ice II Xtreme RAD with dual 120mm 75CFM fans underneath
3. I have a 240mm drawing out of the top of the case over the RAD as well
4. My ForceWare version is 260.99

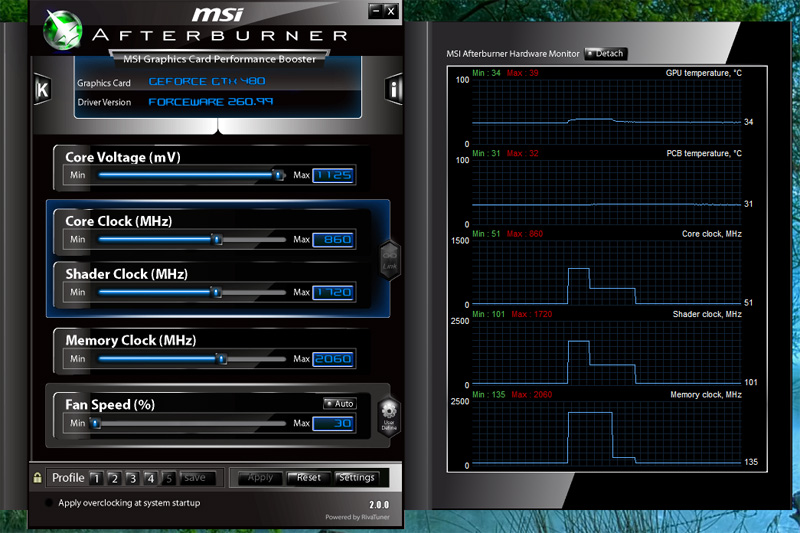

5. I use AfterBurner 2.0.0 to overclock

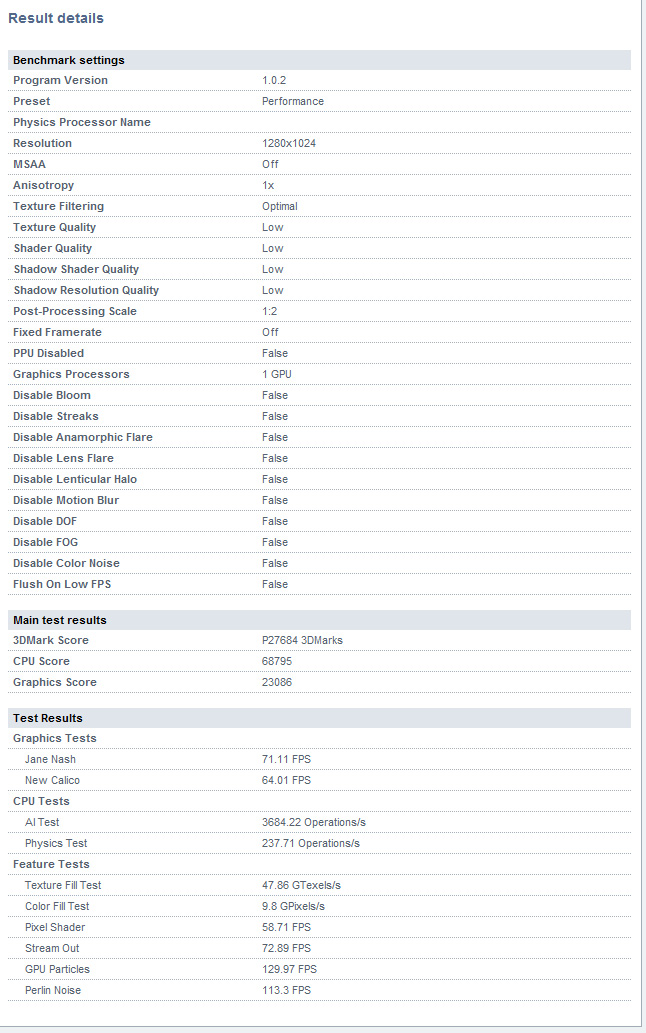

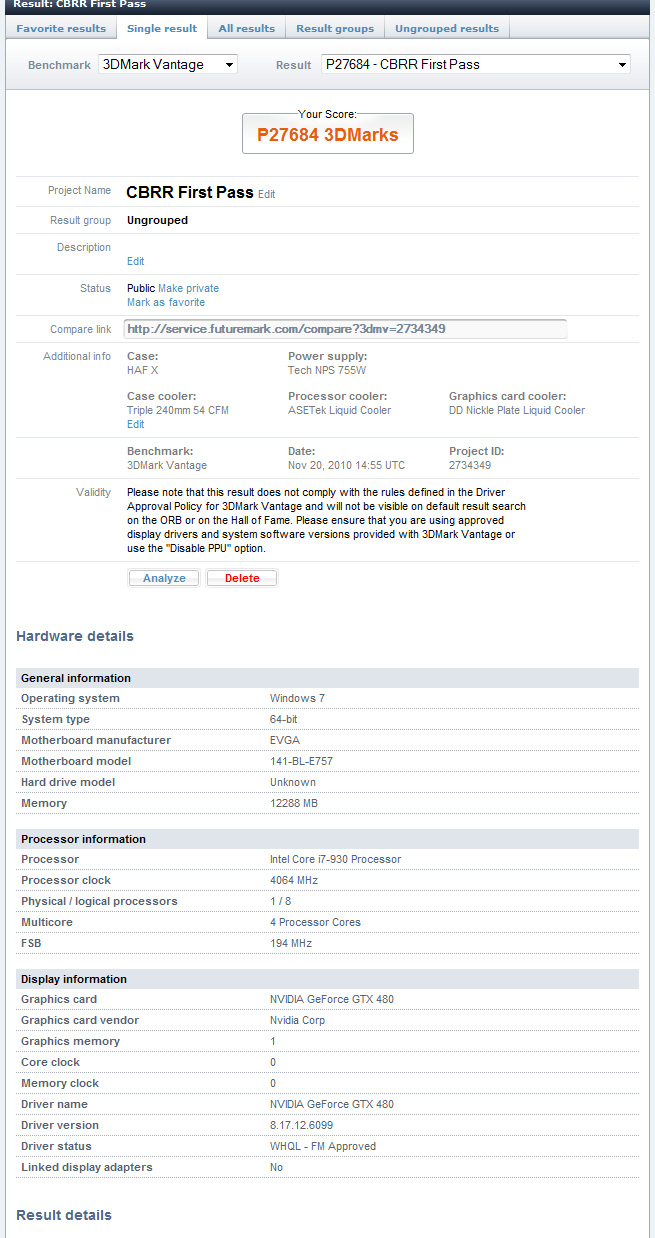

6. I get 27640 using 3D Mark 2008, but the GPU scores seem low (23806)
7. I have a TechNPS 755W power
8. 12 GB of TechNPS DDR3 1600MHz RAM
9. Intel i7 930 OC'd to 4.26 GHz

If I have missed something that you need to know in order to help me please let me know and I will add it to the post.

At this point I am at a loss

Edited by cyberotter - 22 Nov 2010 at 5:43pm

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version
cyberotter Members Profile Find Members Posts Add to Buddy List Newbie Joined: 22 Nov 2010 Online Status: Offline Posts: 5	Quote Reply Topic: GTX480 OC Question Posted: 22 Nov 2010 at 5:28pm
	I have a standard GTX 480 that I ordered in a system that DS shipped to me a few months ago. Here is the issue. I have seen a few individuals that have posted 900+ on the CoreClock of this card and I can't seem to get above 860/1720/2060 and keep it stable. I know each card has it's own limitations, but I would like input as to things I have not yet thought of to increase this setting. 1. I purchased the Danger Den GTX 480 nickle plated water block 2. I put Black Ice II Xtreme RAD with dual 120mm 75CFM fans underneath 3. I have a 240mm drawing out of the top of the case over the RAD as well 4. My ForceWare version is 260.99 5. I use AfterBurner 2.0.0 to overclock 6. I get 27640 using 3D Mark 2008, but the GPU scores seem low (23806) 7. I have a TechNPS 755W power 8. 12 GB of TechNPS DDR3 1600MHz RAM 9. Intel i7 930 OC'd to 4.26 GHz If I have missed something that you need to know in order to help me please let me know and I will add it to the post. At this point I am at a loss Edited by cyberotter - 22 Nov 2010 at 5:43pm
	HAF X Cooler Master ASETech LCLC+35-150-2000013 Danger Den DD-GTX480 Keyboard Razer Lycosa Mouse Razer Lachesis Corsair Extreme P256 GB TechPNS 755W HP ZR30w Black Ice Xtreme II 240mm RAD

justin.kerr Members Profile Find Members Posts Add to Buddy List DS Veteran Joined: 06 May 2008 Online Status: Offline Posts: 5084	Quote Reply Posted: 22 Nov 2010 at 5:46pm
	looks like a high VID GTX 480, needs more volatge.


cyberotter Members Profile Find Members Posts Add to Buddy List Newbie Joined: 22 Nov 2010 Online Status: Offline Posts: 5	Quote Reply Posted: 22 Nov 2010 at 5:50pm
	Should I modify the BIOS to get more V??? I can run the card at 1125 & 1138 with the same crash after 2-3 minutes?
	HAF X Cooler Master ASETech LCLC+35-150-2000013 Danger Den DD-GTX480 Keyboard Razer Lycosa Mouse Razer Lachesis Corsair Extreme P256 GB TechPNS 755W HP ZR30w Black Ice Xtreme II 240mm RAD

justin.kerr Members Profile Find Members Posts Add to Buddy List DS Veteran Joined: 06 May 2008 Online Status: Offline Posts: 5084	Quote Reply Posted: 22 Nov 2010 at 5:58pm
	If you are comfortable in doing that, then yes, mod the BIOS to raise the Voltage limits, or use MSI AB extreme, or a mod for MSI. On my GTX 470, which are set to a lor lower maximum voltage, I used 1.25V on air, but after that, extra voltgae did not help, temps were too high to keep stable. High VID 480's won't clock as well, your temps are good, so more voltage to go higher. Also your RAM seems very slow, have you tried raising it? My GTX 470 uses slower speed RAM and I was running it at 2160Mhz Edited by justin.kerr - 22 Nov 2010 at 5:58pm


justin.kerr Members Profile Find Members Posts Add to Buddy List DS Veteran Joined: 06 May 2008 Online Status: Offline Posts: 5084	Quote Reply Posted: 22 Nov 2010 at 6:00pm
	and I think this thread needs to be moved ..


cyberotter Members Profile Find Members Posts Add to Buddy List Newbie Joined: 22 Nov 2010 Online Status: Offline Posts: 5	Quote Reply Posted: 22 Nov 2010 at 6:02pm
	I don't mean to be a dumb as, but what does VID stand for? There is an extreme version of AB? No I have not yet got to raising the RAM clock yet. How much does that effect the video response if I may be so retarded as to inquire?
	HAF X Cooler Master ASETech LCLC+35-150-2000013 Danger Den DD-GTX480 Keyboard Razer Lycosa Mouse Razer Lachesis Corsair Extreme P256 GB TechPNS 755W HP ZR30w Black Ice Xtreme II 240mm RAD

Alex Members Profile Find Members Posts Add to Buddy List Admin Group Digital Storm Supervisor Joined: 04 Jun 2012 Online Status: Offline Posts: 16314	Quote Reply Posted: 22 Nov 2010 at 6:02pm
	@justin.kerr, Yes! Topic has been moved to 'Performance/Overclocking'


cyberotter Members Profile Find Members Posts Add to Buddy List Newbie Joined: 22 Nov 2010 Online Status: Offline Posts: 5	Quote Reply Posted: 22 Nov 2010 at 6:04pm
	Yes this is where I wanted the topic posted. Derp face... Edited by cyberotter - 22 Nov 2010 at 6:05pm
	HAF X Cooler Master ASETech LCLC+35-150-2000013 Danger Den DD-GTX480 Keyboard Razer Lycosa Mouse Razer Lachesis Corsair Extreme P256 GB TechPNS 755W HP ZR30w Black Ice Xtreme II 240mm RAD

justin.kerr Members Profile Find Members Posts Add to Buddy List DS Veteran Joined: 06 May 2008 Online Status: Offline Posts: 5084	Quote Reply Posted: 22 Nov 2010 at 6:45pm
	Yes, raising the memory will raise your score, and you will also find that core speed and memory speed have a funky relationship Yes there is an extreme version of MSI AB, and also some mods that you can add to it to raise the core voltage, max 1.6V If I remember correctly, hard mods to go higher than that. but I am not at liberty to give those out Using the BIOS flash you can get a lot more V core, so that would be a good route, if you are comfortable in flashing the GPU BIOS


cyberotter Members Profile Find Members Posts Add to Buddy List Newbie Joined: 22 Nov 2010 Online Status: Offline Posts: 5	Quote Reply Posted: 23 Nov 2010 at 7:25am
	Thank you very much Justin. I will attempt to find this elusive extreme version and work on raising my RAM speeds
