Overclock Round 2

Post Date: 2010-07-10
 Post Reply Post Reply
Page  123>
Author
  Topic Search Topic Search  Topic Options Topic Options
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Topic: Overclock Round 2
    Posted: 10 Jul 2010 at 11:33pm
Last time me and justin tried oc'ing my i7 960 I discovered I had faulty ram, well now I have new ram.  So I'm ready to give it another try, so if you can help me out justin, work your magic lol.
Back to Top
!ender_ View Drop Down
DS Veteran
DS Veteran


Joined: 24 Oct 2007
Online Status: Offline
Posts: 4219 		  Quote !ender_ Quote  Post ReplyReply bullet Posted: 11 Jul 2010 at 7:43pm
well id be happy to help but if you want only him to do it, thats all you
Back to Top
Dragoonseal View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 03 Apr 2009
Online Status: Offline
Posts: 2247 		  Quote Dragoonseal Quote  Post ReplyReply bullet Posted: 11 Jul 2010 at 7:49pm
Someone else can help you fine tune more, but I found this post by Venom from DS to be very helpful for general troubleshooting once you start. It let me get Lilim to 4.2GHz 24-hour Prime95 stable with little effort. If you get any other Bluescreen codes not listed here or just want more information on any specific BIOS setting you can Google them.

Originally posted by venom

To start, set your RAM divider to 2:8 1066MHz, timings to the ram's rated spec, and increase bclock by 10MHz and test it each time you increase with LinX until you reach about 170, then start increasing by 5MHz. When you are at 190, increase by 2-3 each time.

Start with 1.3000v cpu vcore, and +100mv cpu vtt.  Set your dimm voltage to what your ram is rated for.

Bluesceen codes:
0x00000101 - increase vcore
0x00000124 - increase vtt or vcore (you will have to test each one)
0x0000009c - increase vcore
0x0000000A - raise/lower vtt or dimm
0x00000050 - raise/lower dimm (usually, can also be vtt related)

justin.kerr is a much better overclocker than I am, so I am sure he can help you further.
Lilim
Intel Core i7 920 @4.2GHz
HAF 932 - Dual SLI Nvidia GTX 480s
3x Intel X25-M G2 (80GB) SSD RAID0
R.I.P. Sinbad the cat (November 16, 1996 - April 18, 2011)
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 11 Jul 2010 at 8:08pm
Thanks dragoon, and no it doesn't just have to be justin lol I'll be glad for some help !ender. Big%20Smile
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 12 Jul 2010 at 3:38pm
So no help?
Back to Top
!ender_ View Drop Down
DS Veteran
DS Veteran


Joined: 24 Oct 2007
Online Status: Offline
Posts: 4219 		  Quote !ender_ Quote  Post ReplyReply bullet Posted: 12 Jul 2010 at 5:40pm
i didnt see that post till now, wierd
either way if justin helped you on the forums, you can use the same tread as a reference, if you cant find it then post up your a copy of what you ordered, a screenshot from CPUZ on the main and memory tabs, and download the following programs for your testing
realtemps
intel burn test
3dmark vantage or just 3dmark
prime95

i wont be abel to really be "on" until around 9 EST
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 12 Jul 2010 at 8:52pm
It's okayy, well the thing is I have different ram with different timings now so it will be a bit different, because the old ram didn't respond well to any oc's because of the faulty ram.  Also my oc might seem a little weird right now, because it took awhile for DS to work up a clock setting with this new ram that worked every other one would end up crashing and such.  However the new clock they had me at which was 3.9 wasn't saved to profile and when I accidently reset the cmos battery it was lost, so now I mildly underclocked my cpu to 3.5ghz from an unstable 3.8 that was saved.  I have linx does it test stress the same things as intel burn test?

Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 12 Jul 2010 at 9:01pm

you running 1600 Mhz RAM?? cause it is overclocked right now  if it is.

all you should need to do at first is raise the multiplier to 23 and re-run the stress testing, if pass then raise it to 25, then boom you are to 4.175Ghz
Linx and IBT will do a quick test on the CPU, but will not stress the Uncore, nor the RAM, so I would use IBT or linx max mem, and once you get it set, you can run Prime95 for the final tweaking
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 12 Jul 2010 at 10:30pm
It's actually running at 1333 Mhz right now.  So I put the multiplier at 23 and I'm sitting at 4.8 ghz, but my max cpu multiplier is 24.  Now to run some Linx.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 12 Jul 2010 at 10:36pm
so the CPUz you posted above is from the old setup??  you max multi is 26, but 25 is all you will needBig%20Smile

Edited by justin.kerr - 12 Jul 2010 at 10:37pm
Back to Top
Dragoonseal View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 03 Apr 2009
Online Status: Offline
Posts: 2247 		  Quote Dragoonseal Quote  Post ReplyReply bullet Posted: 12 Jul 2010 at 10:41pm
Your memory multiplier is set to 10, so it is currently running at 1666MHz, not 1333MHz.

With CPU-Z multiply the Bus Speed under the CPU tab by the memory multi listed under FSB:DRAM (second number) in the memory tab. Or just multiply the DRAM Frequency reading by 2.

CPU-Z usually reports the Bus Speed number a bit low, so it's probably actually 167, meaning the memory is at 1670MHz and the CPU is at 3507MHz, if you wanted exact numbers.
Lilim
Intel Core i7 920 @4.2GHz
HAF 932 - Dual SLI Nvidia GTX 480s
3x Intel X25-M G2 (80GB) SSD RAID0
R.I.P. Sinbad the cat (November 16, 1996 - April 18, 2011)
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 12 Jul 2010 at 11:14pm
Ahh I see I got you, so 1600 Mhz or 1670 it is lol.  Yes the CPU-Z setup is from my old setup with my tweaks to make it stable and taking it down to 3.5 ghz.  When I'm in the BIOS and I'm adjusting CPU multiplier it says max 24, and it won't even let me type in 25.

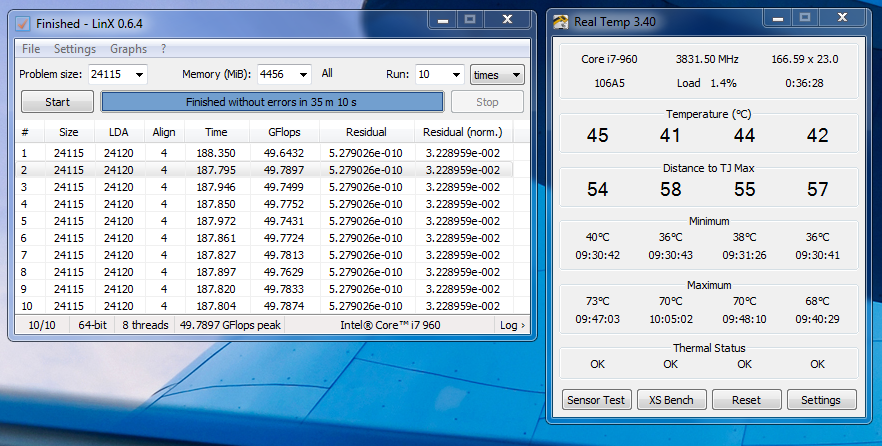

Passed Linx on ten passes with a 23x multiplier, so what next?  It won't let me put 25x is there some setting I should change or what?

Edited by WardTheSteak - 12 Jul 2010 at 11:15pm
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 12 Jul 2010 at 11:21pm
you should post your full BIOS settings, that way we can get you to 25 multi, and make sure you don't have any other issues. lol
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 12:05am
Cpu Uncore Frequency (Auto)
PCIE Frequency (100)

With Vdroop
Cpu Vcore (1.38125v)
Cpu VTT Voltage (+150mV)
CPU PLL Vcore (Auto)
IOH PLL Vcore (Auto)
Qpi PLL Vcore (Auto)
Dimm Voltage (1.650v)
IOH Vcore (Auto)
IOH/ICH I/O Voltage (Auto)
ICH Vcore (Auto)
VTT Pwm Frequency (250 Khz)
CPU Pwm Frequency (800 Khz)

Intel Speed Step (disabled)
Intel Turbo Mode (disabled)

I can only put intel turbo mode on when I have a multiplier of 24x, and even with intel turbo mode and speed step enabled I'm still capped at 25x.

Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 1:47am
Could it be that I don't have the extreme and my cpu is locked?
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 2:45pm
 No, it is a knowledge issue, nothing wrong with the CPU.

Cpu Uncore Frequency (Auto)  change to 20
PCIE Frequency (100) up to 103 for now


With Vdroop change to without
Cpu Vcore (1.38125v)
Cpu VTT Voltage (+150mV)
CPU PLL Vcore (Auto) make it 1.8
IOH PLL Vcore (Auto) make it 1.8
Qpi PLL Vcore (Auto) make it 1.25
Dimm Voltage (1.650v)
IOH Vcore (Auto) change to 1.2
IOH/ICH I/O Voltage (Auto) change to 1.55
ICH Vcore (Auto) change to 1.2
VTT Pwm Frequency (250 Khz)
CPU Pwm Frequency (800 Khz)

Intel Speed Step (disabled)
Intel Turbo Mode (disabled) enable

tons more settings.. wish you would post em up. lol
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 4:47pm
Okay, I'm adding more stuff, and putting the settings in right now.  One problem, for some reason I cannot enable turbo mode unless I have a 24x multiplier.  Also, do you just want the settings out of the Frequency/Voltage control of the BIOS, or do you want a whole bios listing?
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 5:32pm
the whole BIOS would be nice like the template I posted last time.
you need the multi set to 24, then enable turbo...
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 5:36pm
Frequency/Voltage Control
Dummy OC (Disabled)
Extreme Cooling (Disabled)
CPU Clock Ratio (23x)
CPU Host Frequency (167)
MCH Strap (Auto)
CPU Uncore (20x)
CPU Clock Skew (Ops)
Spread Spectrum (Disabled)
PCIE Frequency (103)
OC Recovery (Enabled)

Voltage Control:

Without Vdroop
Cpu Vcore (1.38125v)
Cpu VTT Voltage (+150mV)
CPU PLL Vcore (1.8)
IOH PLL Vcore (1.8)
Qpi PLL Vcore (1.25)
Dimm Voltage (1.650v)
IOH Vcore (1.2)
IOH/ICH I/O Voltage (1.55)
ICH Vcore (1.2)
VTT Pwm Frequency (250 Khz)
CPU Pwm Frequency (800 Khz)
CPU Impendance (Auto)
Qpi Signal Compensation (Auto)

CPU Feature:
Intel Speed Step (disabled)
Intel Turbo Mode (disabled) since I can't enable it without a 24x multiplier
Cxe Function (Disabled)
Execute Disable Bit (Disabled)
Virtualization Technology (Disabled)
Intel HT Technology (Enabled)
Active Processor Cores (All)

Memory Feature:
Memory Speed (Standard)
Memory Control Setting (Enabled)
Memory Frequency (1333Mhz, 2:10)
Channel Interleave Setting (6 way)
Rank Interleave Setting (4 way)
Memory Low Gap (Auto)
Command Rate (2T)

tCL Setting (9)
tRCD Setting (9)
tRP Setting (9)
tRAS Setting (28)
tRFC Setting (88)
Command Rate (2t)


Edited by WardTheSteak - 13 Jul 2010 at 5:44pm
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 5:38pm
QPI Control Settings (Enabled)
QPI Link Fast Mode (Enabled)
QPI Frequency Selection (Auto)
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 7:31pm
QPI Control Settings (Enabled)
QPI Link Fast Mode (Enabled)
QPI Frequency Selection (Auto) --4.6
Frequency/Voltage Control
Dummy OC (Disabled)
Extreme Cooling (Disabled)
CPU Clock Ratio (23x) --24
CPU Host Frequency (167)
MCH Strap (Auto)
CPU Uncore (20x)
CPU Clock Skew (Ops)
Spread Spectrum (Disabled)
PCIE Frequency (103)
OC Recovery (Enabled)

Voltage Control:

Without Vdroop
Cpu Vcore (1.38125v)
Cpu VTT Voltage (+150mV)
CPU PLL Vcore (1.8)
IOH PLL Vcore (1.8)
Qpi PLL Vcore (1.25)
Dimm Voltage (1.650v)
IOH Vcore (1.2)
IOH/ICH I/O Voltage (1.55)
ICH Vcore (1.2)
VTT Pwm Frequency (250 Khz)
CPU Pwm Frequency (800 Khz)
CPU Impendance (Auto)
Qpi Signal Compensation (Auto)

CPU Feature:
Intel Speed Step (disabled)
Intel Turbo Mode (disabled) ENEABLE
Cxe Function (Disabled)
Execute Disable Bit (Disabled)
Virtualization Technology (Disabled)
Intel HT Technology (Enabled)
Active Processor Cores (All)

Memory Feature:
Memory Speed (Standard)
Memory Control Setting (Enabled)
Memory Frequency (1333Mhz, 2:10)
Channel Interleave Setting (6 way)
Rank Interleave Setting (4 way)
Memory Low Gap (Auto)
Command Rate (2T)

tCL Setting (9)
tRCD Setting (9)
tRP Setting (9)
tRAS Setting (28)
tRFC Setting (88)
Command Rate (2t)
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 7:44pm
Okay I have all of these settings, and I'm sitting at 4.164 ghz, now just run some tests then see what we can do from there or do you think this is as close to 2 or higher I should shoot for?
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 7:55pm
When running linx at these settings the system crashed after about a minute and a half in.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 8:08pm
bump V core 3 clicks up
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 13 Jul 2010 at 10:54pm
I bumped the CPU Vcore up from 3.8125 to 3.4v is this correct?  It crashed again.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 14 Jul 2010 at 8:34am
did it blue screen,? freeze? just shut down?
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 14 Jul 2010 at 9:54am
It froze then went to blue screen after about 2 mins of linx.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 14 Jul 2010 at 11:39am
did you happen to catch to blue screen code?
bump voltage 3 more clicks, retry
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 14 Jul 2010 at 1:44pm
Nope I didn't.  I'll get it if it happens again next time.  Alright three more clicks it is.
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 14 Jul 2010 at 3:16pm

Finished 10 passes of linx!
Back to Top
!ender_ View Drop Down
DS Veteran
DS Veteran


Joined: 24 Oct 2007
Online Status: Offline
Posts: 4219 		  Quote !ender_ Quote  Post ReplyReply bullet Posted: 14 Jul 2010 at 3:51pm
good progress, temps are getting up there, be careful when you do prime
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 14 Jul 2010 at 4:38pm
things are looking good... I would try for Prime95 now..
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 14 Jul 2010 at 5:10pm
Alright I'm gonna go ahead and do that later on tonight, because I have some stuff I need to get done.  I'll post the results tomorrow.
Back to Top
WardTheSteak View Drop Down
Senior Member
Senior Member

Email address used to purchase matched with forums account email.

Joined: 08 Feb 2010
Online Status: Offline
Posts: 605 		  Quote WardTheSteak Quote  Post ReplyReply bullet Posted: 15 Jul 2010 at 1:08pm
So I'm not exactly sure how long prime95 went last night, but it stopped working somewhere along the way.  There was no errors found, because I looked at the results.  The program just stopped working.


Soo, I guess more prime then.


Edited by WardTheSteak - 15 Jul 2010 at 1:10pm
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 15 Jul 2010 at 1:14pm
most likely 2 more clicks on V core
Back to Top
 Post Reply Post Reply Page  123>

Forum Jump Forum Permissions View Drop Down



This page was generated in 7.421875E-02 seconds.
