Overclocking i7 Extreme 975

Post Date: 2010-02-15
 Post Reply Post Reply
Page  12>
Author
  Topic Search Topic Search  Topic Options Topic Options
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Topic: Overclocking i7 Extreme 975
    Posted: 15 Feb 2010 at 1:52pm

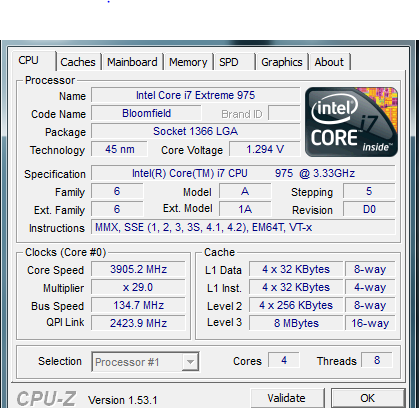

OK here are my settings. What do i change and by how much?
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 1:59pm
I can only see one pic?
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 2:02pm

Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 2:04pm

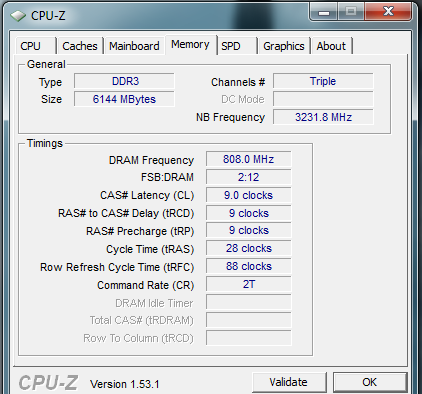

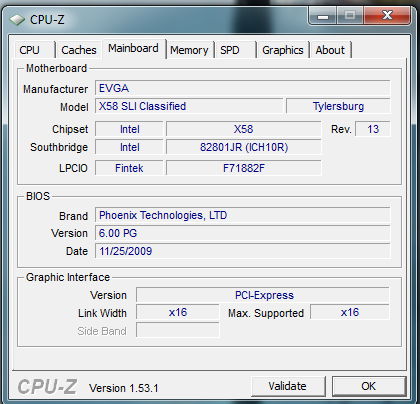

Can't seem to get all 3 images on 1 post. Here is 3rd screen.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 2:13pm
Ok, you have Linx, and realtemp correct?
Do you have a program called E-leet? will need that to
when you have all of them, then the next step will be to enter the BIOS, this is done by restarting your PC, and tapping the DEL key intil you see the blue BIOS screen, in the BIOS you will see frequency/volatge control, enter that tab, and as you navigate through the various sections, I need you to fill out your settings in the template.

copy the template and replace what is in red with your settings
Frequency Control
CPU Clock Ratio ( 20X )
CPU Host Frequency (Mhz) ( 133 )
MCH Strap ( Auto )
CPU Uncore Frequency (Mhz) ( Auto )
CPU Clock Skew ( 0 ps )
Spread Spectrum ( Disabled )
PCIE Frequency (Mhz) ( 100 )


Memory Feature
Memory Speed ( XMP Profile 1 )
Memory Control Setting ( Enabled )
Memory Frequency ( Auto -> 1600Mhz )
Channel Interleave Setting ( 6 Way )
Rank Interleave Setting ( 4 Way )
Memory Low Gap ( Auto )
tCL Setting ( 9 )
tRCD Setting ( 9 )
tRP Setting ( 9 )
tRAS Setting ( 24 )
tRFC Setting ( 88 )
Command Rate ( 1t )


Voltage Control
EVGA VDroop Control ( With VDroop )
CPU VCore ( Auto )
CPU VTT Voltage ( Auto )
CPU PLL VCore ( Auto )
IOH PLL VCore ( Auto )
DIMM Voltage ( 1.65 )
DIMM DQ Vref ( +0mV )
QPI PLL VCore ( Auto )
IOH VCore ( Auto )
IOH/ICH I/O Voltage ( Auto )
ICH VCore ( Auto )
PWM Frequency ( 800 Khz )


CPU Feature
Intel SpeedStep ( Disabled )
Turbo Mode Function ( Enabled )
CxE Function ( Disabled )
Execute Disable Bit ( Enabled )
Virtualization Technology ( Enabled )
Intel HT Technology ( Enabled )
Active Processor Cores ( All )
QPI Control Settings ( Enabled )
QPI Link Fast Mode ( Enabled )
QPI Frequency Selection ( Auto )
OC Recorvery ( Disabled )

PnP/PCI     PCI Express
Maximum Payload Size ( 128 )



Edited by justin.kerr - 15 Feb 2010 at 2:15pm
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 4:35pm
i have E-Leet and Realtemp. What is Linx?
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 5:51pm
linx http://www.youwatched.com/datajay/linx-setup.exe
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 8:37pm
The following are my settings.

Frequency Control
CPU Clock Ratio ( 29X )
CPU Host Frequency (Mhz) ( 135 )
MCH Strap ( Auto )
CPU Uncore Frequency (Mhz) ( Auto )
CPU Clock Skew ( 0 ps )
Spread Spectrum ( Disabled )
PCIE Frequency (Mhz) ( 100 )


Memory Feature
Memory SPD( Standard)
Memory Control Setting ( Enabled )
Memory Frequency ( 1600Mhz / 2:12)
Channel Interleave Setting ( 6 Way )
Rank Interleave Setting ( 4 Way )
Memory Low Gap ( Auto )
tCL Setting ( 9 )
tRCD Setting ( 9 )
tRP Setting ( 9 )
tRAS Setting ( 28 )
tRFC Setting ( auto )
Command Rate ( 2t )


Voltage Control
EVGA VDroop Control ( With VDroop )
CPU VCore ( 1.30000V )
CPU VTT Voltage ( +100mV )
CPU PLL VCore ( Auto )
IOH PLL VCore ( Auto )
DIMM Voltage ( 1.660V )
DIMM DQ Vref ( +0mV )
QPI PLL VCore ( Auto )
IOH VCore ( Auto )
IOH/ICH I/O Voltage ( Auto )
ICH VCore ( Auto )
CPU PWM Frequency ( 800 Khz )


CPU Feature
Intel SpeedStep ( Disabled )
Turbo Mode Function ( Enabled )
CxE Function ( Disabled )
Execute Disable Bit ( Disabled )
Virtualization Technology ( Disabled )
Intel HT Technology ( Enabled )
Active Processor Cores ( All )
QPI Control Settings ( Enabled )
QPI Link Fast Mode ( Enabled )
QPI Frequency Selection ( 4.800 GT/s )
OC Recorvery ( Enabled )

PnP/PCI     PCI Express
Maximum Payload Size ( 128 )

Did not find PnP/PCI PCI EXpress or Maximum Payload SizeThe following are my settings.Did not find PnP/PCI PCI EXpress or Maximum Payload Size
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 8:50pm
Ok, well first thing I will need to know is how far do you want to go with this overclock? your chips looks like we can go pretty high, but I do not know how high we can go and still be under DS warranty?
also I might need you to make sure that the other memory timings are on auto, that way we can get rid of that 2t on the RAM. lol
So if you give me an idea of how high you want to go, then we can set the BIOS up for that goal, and slowly work our way to it.
I know DS warranty is good for 4.2Ghz as long as the temps and voltages are in check, and I think your chip could go 4.4Ghz-4.6Ghz but 4.2 will be no problem.


Edited by justin.kerr - 15 Feb 2010 at 8:52pm
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 9:04pm
4.2 to 4.3 is enough for me even though i have a stage 6 LCS for CPU and GPU cooling.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 9:17pm
ok, well we shall set the ground work for 4.3Ghz and see how it goes.

ok change these settings

Frequency Control
CPU Clock Ratio ( 29X )  change to 25

CPU Host Frequency (Mhz) ( 135 )   change to 161

MCH Strap ( Auto )
CPU Uncore Frequency (Mhz) ( Auto ) change to 20x
CPU Clock Skew ( 0 ps )
Spread Spectrum ( Disabled )
PCIE Frequency (Mhz) ( 100 ) change to 103


Memory Feature
Memory SPD( Standard)
Memory Control Setting ( Enabled )
Memory Frequency ( 1600Mhz / 2:12)       change to 2:10
Channel Interleave Setting ( 6 Way )
Rank Interleave Setting ( 4 Way )
Memory Low Gap ( Auto )
tCL Setting ( 9 )
tRCD Setting ( 9 )
tRP Setting ( 9 )
tRAS Setting ( 28 )
tRFC Setting ( auto )
Command Rate ( 2t ) change to 1T make sure all memory timing settings bellow this are on auto


Voltage Control
EVGA VDroop Control ( With VDroop ) change to without V droop
CPU VCore ( 1.30000V )   change to 1.375
CPU VTT Voltage ( +100mV ) change to +150
CPU PLL VCore ( Auto ) change to 1.80
IOH PLL VCore ( Auto )
DIMM Voltage ( 1.660V )
DIMM DQ Vref ( +0mV )
QPI PLL VCore ( Auto ) change to 1.25
IOH VCore ( Auto )  change to 1.25
IOH/ICH I/O Voltage ( Auto )
ICH VCore ( Auto )
CPU PWM Frequency ( 800 Khz )


CPU Feature
Intel SpeedStep ( Disabled )
Turbo Mode Function ( Enabled ) change to disable
CxE Function ( Disabled )
Execute Disable Bit ( Disabled )
Virtualization Technology ( Disabled )
Intel HT Technology ( Enabled )
Active Processor Cores ( All )
QPI Control Settings ( Enabled )
QPI Link Fast Mode ( Enabled )
QPI Frequency Selection ( 4.800 GT/s ) make sure this is NOT set to auto
OC Recorvery ( Enabled )

PnP/PCI     PCI Express
Maximum Payload Size ( 128 )

Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 10:03pm
I'm on the East coast so will make the changes tomorrow. After making changes should i save that profile in the BIOS?
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 15 Feb 2010 at 10:09pm
yes F-10 to save and restart, just make sure you get all of the changes. lol
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 12:31pm
Will try those settings later on today. Since the Hailstorm is already OCd from 3.33 to 3.92 what will these new settings take it up to?
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 12:35pm
the new settings will not bump it much, but rather lay the ground work for a higher overclock, the new settings will start you out at 4.025Ghz, and then you can go up from there
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 1:49pm
as Justin said, in the post before last, its the ground work, he will first they and get you stable at 4GHz then once you are stable he will move you up from there.

Nvidia Drivers----AMD Drivers
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 2:11pm
i have Real Temp and LinX saved on my desktop. Tried to download E-Leet from EVGA site but i do not know what my EVGA serial number is and cannot register. Is there another place i can download that file?
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 2:18pm
should be on your EVGA disk in your folder
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 3:44pm
CPU Uncore Frequency will only allow me to enter
Auto or numbers starting with 24X. There is nothing showing lower than 24X up to 60X
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 4:02pm
Left Memory Frequency 1600 Mhz / 2:12 as is. Only option showing for 2:10 is to use 1333 Mhx.

Did not see PnP/PCI     PCI Express
Maximum Payload Size ( 128 )
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 5:08pm

have to use 2:10  for meory have to use 20x on uncore some times you have to select 2:10 basck out to main BIOS then re-enter the frequency/voltage tab again
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 9:40pm
Cannot get the memory settings to 2:10. Business trip tomorrow will try again on Thursday. Thanks for your help.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 16 Feb 2010 at 10:22pm
? seems crazy? there should be a bunch of options? 2:10 should be one of them
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 18 Feb 2010 at 2:03pm
Trying your settings again. The lowest option i see for CPU Uncore Frequency is (24X). There is no option for 20X. The only option showing before (24X) is Auto.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 18 Feb 2010 at 2:05pm
like I said earlier, once you select 2:10 for the RAM multi, you have to exit to the main BIOS screen then go back to the frequencies/voltages section, glitch in the BIOS.
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 22 Feb 2010 at 9:46pm
Justin, Have not given up. Been busy but will try your suggested settings again and post results.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 23 Feb 2010 at 7:26am
no problem, lol
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 23 Feb 2010 at 9:14pm
Having boot up issues. Reloaded Win 7 but keep getting error messages re my hardrive and RAID 0. Notified DS and waiting for their help. As soon as my system is stabile and working properly will start again on the OC.
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 14 Mar 2010 at 11:19am
Justin,
Hailstorm back on line after DS sent me new hard drives. Also added 2 Corsair SSDs.
Followed your instructions. Finally got all your recommended settings to the BIOS entered. Saved and rebooted successfully. CPU-Z shows core speed now is 4.015. What do i do next?

Mal
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 14 Mar 2010 at 5:30pm
Justin,
Still available for help?
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 14 Mar 2010 at 5:31pm
now you need to run 10 passes of Linx at max memory, and have realtemp going to check the temps.
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 14 Mar 2010 at 7:54pm
OK. Will do that tomorrow and let you know the results.
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 18 Mar 2010 at 1:20pm
Justin,
Running Linx 10 times today. Will post results.
Back to Top
justin.kerr View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 06 May 2008
Online Status: Offline
Posts: 5084 		  Quote justin.kerr Quote  Post ReplyReply bullet Posted: 18 Mar 2010 at 2:46pm
sounds good
Back to Top
tanamerra View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 12 Dec 2009
Online Status: Offline
Posts: 168 		  Quote tanamerra Quote  Post ReplyReply bullet Posted: 18 Mar 2010 at 3:25pm
How long does it normally take to run LinX 10 times. Still going on after 1 hour.
Back to Top
 Post Reply Post Reply Page  12>

Forum Jump Forum Permissions View Drop Down



This page was generated in 0.078125 seconds.
