Velox 4x drives?

Post Date: 2021-12-01

 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
Menizzi View Drop Down
Newbie
Newbie
Avatar

Joined: 14 Nov 2021
Online Status: Offline
Posts: 12
  Quote Menizzi Quote  Post ReplyReply bullet Topic: Velox 4x drives?
    Posted: 01 Dec 2021 at 10:10am
I see 2x hard drive slots at the bottom but when you go to the drop down menu you can select up to 4x drives. If you can add cages i think you might be able to go 3 high and still clear the water cooling hard lines but were does the 4th go? on the back? I can not fine pictures of the back of a velox case. Maybe its 2 in the cages and 2 in the back?

Bruce
Well if you added a twin turbocharged doofus doll to the second from last cheese cracker - it might just work...
Back to Top
Cretae View Drop Down
DS Veteran
DS Veteran
Avatar
Email address used to purchase matched with forums account email.

Joined: 22 Mar 2010
Online Status: Offline
Posts: 6782
  Quote Cretae Quote  Post ReplyReply bullet Posted: 01 Dec 2021 at 11:37am
Depending on the motherboard, there will be at least two M.2 slots for NVMe SSDs. The Maximus Hero has 5. Many motherboards, including some or all of the ones DS uses have indents stamped into the back of the board which accommodate 2.25" SSDs. Then there's the cage you mention. If you're looking for a space for four 3.5" HDDs, you may need an Aventum or be out of luck here.
Back to Top
Menizzi View Drop Down
Newbie
Newbie
Avatar

Joined: 14 Nov 2021
Online Status: Offline
Posts: 12
  Quote Menizzi Quote  Post ReplyReply bullet Posted: 01 Dec 2021 at 1:27pm

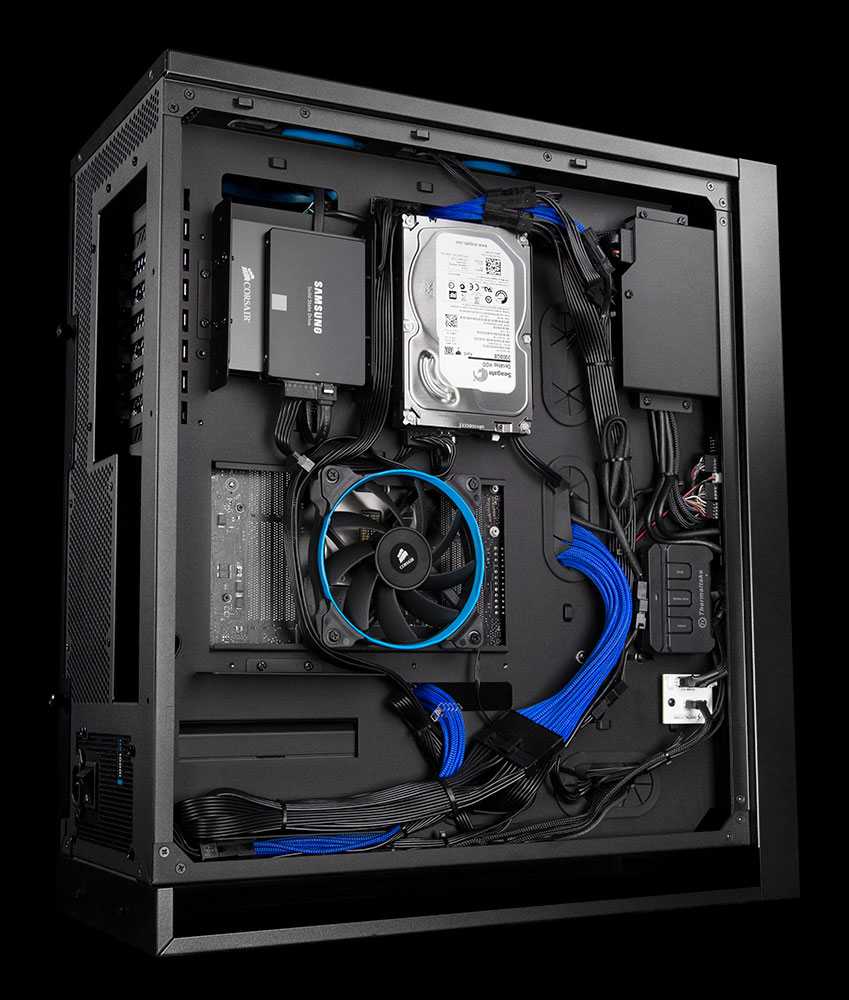

Found a picture

Well if you added a twin turbocharged doofus doll to the second from last cheese cracker - it might just work...
Back to Top
hoserator View Drop Down
DS Veteran
DS Veteran

We don't need no stinking "Avatars" !
Email address used to purchase matched with forums account email.

Joined: 08 Oct 2014
Online Status: Offline
Posts: 7374
  Quote hoserator Quote  Post ReplyReply bullet Posted: 01 Dec 2021 at 3:18pm
Originally posted by Cretae

Depending on the motherboard, there will be at least two M.2 slots for NVMe SSDs. The Maximus Hero has 5. Many motherboards, including some or all of the ones DS uses have indents stamped into the back of the board which accommodate 2.25" SSDs. Then there's the cage you mention. If you're looking for a space for four 3.5" HDDs, you may need an Aventum or be out of luck here.


To correct a repeated error, motherboard do not have indents in the back. You use standoffs to keep the motherboard from touching the case not to fit SSDs. The indents that Cretae refers to are stamped in the backs of most modern cases to fit the SATA SSDs.
Back to Top
Onkel_Ken View Drop Down
DS Veteran
DS Veteran
Avatar
Email address used to purchase matched with forums account email.

Joined: 17 Dec 2008
Online Status: Offline
Posts: 2861
  Quote Onkel_Ken Quote  Post ReplyReply bullet Posted: 01 Dec 2021 at 6:42pm
Interesting about mounting stuff in the back side of the Velox case.
Velox X/AMD 5900X/MSI X570 Pro Carbon MB/32GB DDDR 3200 DSPS/850W PS/500GB Samsung 980 Pro/1TB Samsung 970 EVO Plus/500 GB HDD/Sound Blaster AE-7/EVGA FTW3 Ultra RTX 3080 10GB/Liquid CPU cooler AIO/
Back to Top
HockeyBuck View Drop Down
DS Veteran
DS Veteran
Avatar
Email address used to purchase matched with forums account email.

Joined: 27 Jul 2012
Online Status: Offline
Posts: 1586
  Quote HockeyBuck Quote  Post ReplyReply bullet Posted: 01 Dec 2021 at 9:37pm
From Velox specs:
Storage Drive Bays: Max 3 HDD slots and 2 SSD slots/Max 8 SSD Slots

If ya do need 4x HDD try popping that question to DS Sales and see whats possible.
Back to Top
ShrykeAbysmal View Drop Down
Newbie
Newbie
Avatar
Email address used to purchase matched with forums account email.

Joined: 12 Dec 2020
Online Status: Offline
Posts: 18
  Quote ShrykeAbysmal Quote  Post ReplyReply bullet Posted: 16 Feb 2022 at 10:08am
Originally posted by HockeyBuck

From Velox specs:
Storage Drive Bays: Max 3 HDD slots and 2 SSD slots/Max 8 SSD Slots

If ya do need 4x HDD try popping that question to DS Sales and see whats possible.


That's confusing, since the configurator for the Velox seems to indicate that you can order SSDs to fill up to three storage sets. If only two can be SSDs it would be wiser to take them out of a third set selection list then wouldn't it? I'm actually looking to replace my two SATA Caviar Black 1TB drives with two 2TB WD Black SSDs so if I can't do that (and have a total of three SSDs it would be good to have that verified.
DigitalStorm Velox
Ryzen 3900X 32GB PC3200 Digital Storm Certified RAM
NVidia RTX3070 8GB
Segate FireCuda PCIe4 500GB, 2x WD Caviar Black 1TB
Silverstone 1200W modular PSU
Back to Top
bprat22 View Drop Down
DS ELITE
DS ELITE

DigitalStorm East -- (Unofficially!)
Email address used to purchase matched with forums account email.

Joined: 08 Jun 2011
Online Status: Offline
Posts: 20362
  Quote bprat22 Quote  Post ReplyReply bullet Posted: 16 Feb 2022 at 11:17am
I haven’t checked on what mounts it can accommodate, but you do not need mounts to use a drive.    If it’s a stationary pc setup, you can place the drive anywhere it fits, like sitting on top of the psu or fitting the drive into any space behind the back cover.   All you need is the power plug from the psu and SATA plug available on the motherboard.



Back to Top
bprat22 View Drop Down
DS ELITE
DS ELITE

DigitalStorm East -- (Unofficially!)
Email address used to purchase matched with forums account email.

Joined: 08 Jun 2011
Online Status: Offline
Posts: 20362
  Quote bprat22 Quote  Post ReplyReply bullet Posted: 16 Feb 2022 at 11:30am
My statement is not the ideal setup, might not look pretty, but I have just placed a drive into a case, hooked it up and left it loose for a few days as I played with the data.    I would use double sided tape to secure it better if it was a more permanent thing.    As SSD and nvm drives become more popular we’ll see less concern about the larger bays to fit an HDD.
Back to Top
JamesAstro View Drop Down
Senior Member
Senior Member
Avatar
Email address used to purchase matched with forums account email.

Joined: 28 Nov 2008
Online Status: Offline
Posts: 513
  Quote JamesAstro Quote  Post ReplyReply bullet Posted: 17 Feb 2022 at 8:36pm
This is a slightly less ideal solution, but could come in handy. It's an external drive dock that can handle HDs and SSDs. I have one of these connected to my Mac laptop, and it works great.

https://eshop.macsales.com/shop/external-drives/owc-drive-dock
Velox, Intel Core i9 11900K, ASUS ROG Maximus XIII Hero
32GB RAM, 1TB Samsung 980 Pro NVME
RTX 3090, 38" Ultrawide LG-38GL950G
Noctua NH-D15S cooler and NF-A14 fans, Corsair AX1600i PSU
