What are your average water-cooled CPU temps?Post Date: 2021-06-27 |
Post Reply
|
| Author | |
Slick_the_Bandit
Newbie
Joined: 20 Jan 2021 Online Status: Offline Posts: 87 |
 Quote Reply
 Topic: What are your average water-cooled CPU temps?Posted: 27 Jun 2021 at 8:49am |
|
Anyone here with a water-cooled Bolt X like me? What temps are running?
But regardless if you have a Bolt X or not, what success have you guys had in running under 80˚C? My Bolt X runs hot at around 85˚-86˚ under load. I definitely feel like something is wrong. I get system reboots with demanding games like Cyberpunk. |
|
|
Stage 1: 1/8/21 | Stage 2: 2/23/21 | Stage 3: 2/25/21 | Stage 4: 2/26/2021 | Stage 5: 3/9/2021 | Stage 6: 3/9/2021 | Stage 7: 3/10/2021 | Shipped: 3/10/2021 | Arrived: 3/11/2021
|
|
 |
|
|
oldlady RPGer
DS Veteran
One of the cool kids
Joined: 09 Sep 2011 Online Status: Offline Posts: 1080 |
Quote Reply
Posted: 28 Jun 2021 at 12:12am |
|
Well I've had LC(Tygon tubing) on my system for ten years. My temps are still in the 40-50C and that's with Cyberpunk.
|
|
|
Me sitting my ECMO in PICU. Now you know why I like LC. ;)
|
|
|
|
|
hoserator
DS Veteran
We don't need no stinking "Avatars" !
Joined: 08 Oct 2014 Online Status: Offline Posts: 7966 |
Quote Reply
Posted: 28 Jun 2021 at 4:01pm |
|
I have never seen anything above 50C on mine but it is not a Bolt. You should contact DS about it. You are supposed to be able to use it with no worries. I have read that in the past they had a special acrylic window with holes for the Bolt for additional airflow. Maybe you need one. |
|
|
|
|
Slick_the_Bandit
Newbie
Joined: 20 Jan 2021 Online Status: Offline Posts: 87 |
Quote Reply
Posted: 28 Jun 2021 at 4:02pm |
I have one, and the temps are the same :( It helped my GPU, though. |
|
|
Stage 1: 1/8/21 | Stage 2: 2/23/21 | Stage 3: 2/25/21 | Stage 4: 2/26/2021 | Stage 5: 3/9/2021 | Stage 6: 3/9/2021 | Stage 7: 3/10/2021 | Shipped: 3/10/2021 | Arrived: 3/11/2021
|
|
|
|
|
MrCheetah
Groupie
Joined: 09 Mar 2021 Online Status: Offline Posts: 392 |
Quote Reply
Posted: 28 Jun 2021 at 7:06pm |
|
Among the variables, radiator performance will depend upon where it is mounted. For example, top mounted is typically configured as exhaust. Such a configuration is good for inner case temps, however, because the inner case temps are what's being fed to the radiator, it won't cool as well. In contrast, a front mounted rad set as intake will get ambient temperature air, which should cool better, but does push the heated air into the case (causing thermal struggles for other components). Basically, it's a compromise either way. The decision is about selecting which compromise is less problematic for your system's other components and usage.

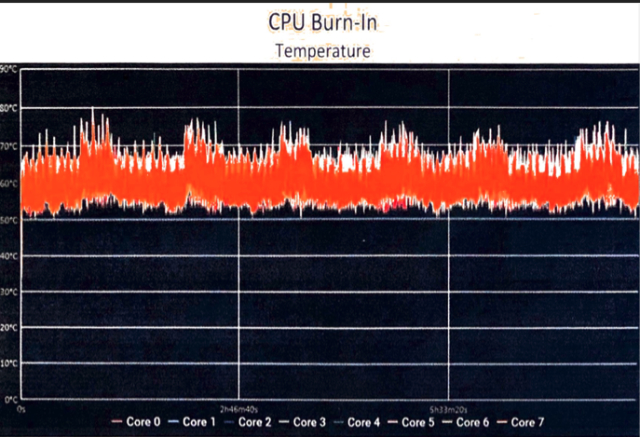

The following probably won't be of much help or perhaps any insight, though I'll lay it out just in case. Intel 11700K CPU with front mounted Corsair iCue H150i
|
|
|
|
|
MrCheetah
Groupie
Joined: 09 Mar 2021 Online Status: Offline Posts: 392 |
Quote Reply
Posted: 28 Jun 2021 at 7:17pm |
No doubt. My GPU temps drop about 5 C when the window is off. So, not a ton but more than error threshold. I think, the problem with the regular side panels, tempered glass or otherwise, is the GPU's exhaust is deflected both above and below the card. If the card directed the fan exhaust just a little towards the backplate (upwards in most cases) it would make that difference because the card wouldn't be recycling its own air and pull in only that supplied by the front intake -- at least on my config anyway. |
|
|
|
|
GreenTeaRex
Groupie
Joined: 28 Oct 2020 Online Status: Offline Posts: 116 |
Quote Reply
Posted: 10 Jul 2021 at 11:29am |
|
I have a Lumos with the AIO watercooler and I never got anything about 55c. Are you sure you're not talking about GPU temps? Because it sounds more normal for GPU's.
Edited by GreenTeaRex - 10 Jul 2021 at 11:30am |
|
|
|
|
Cretae
DS Veteran
Joined: 22 Mar 2010 Online Status: Offline Posts: 7331 |
Quote Reply
Posted: 11 Jul 2021 at 9:28am |
|
He has the small form factor Bolt which has most recently been running hotter than usual because of higher power draws by the newest parts, IMHO. There have been a handful of high temp issues just the last 3-4 months. It's very tight quarters in there.
Your temps are just what I would expect for an AOI Lumos.
|
|
|
|
|
GreenTeaRex
Groupie
Joined: 28 Oct 2020 Online Status: Offline Posts: 116 |
Quote Reply
Posted: 11 Jul 2021 at 11:37am |
Ah I see. Sorry to sound so ignorant. That's an unfortunate trade off and I hope they can fix that issue.
|
|
|
|
|
Cretae
DS Veteran
Joined: 22 Mar 2010 Online Status: Offline Posts: 7331 |
Quote Reply
Posted: 12 Jul 2021 at 4:06am |
|
Not ignorant at all.
They have a plexiglass side panel with some holes cut in it to help it breathe better when necessary, and had some success with that. Like I said, there have been only a handful of folks report issues, so I hope it's situational. I do hope they get it sorted out, because they have been very proud of their custom compact design for several years. |
|
|
|
|
hoserator
DS Veteran
We don't need no stinking "Avatars" !
Joined: 08 Oct 2014 Online Status: Offline Posts: 7966 |
Quote Reply
Posted: 12 Jul 2021 at 6:18am |
|
From the images it looks like that air intakes are in the bottom of the case and you have to be careful where you place it and around the I/O plate which is next to the mobo internal cooler so it gets warm going in. Not too much space for fans.
|
|
|
|
|
Slick_the_Bandit
Newbie
Joined: 20 Jan 2021 Online Status: Offline Posts: 87 |
Quote Reply
Posted: 26 Jul 2021 at 4:05pm |
|
So, I've come back with lots of homework done.
Since I last made this post, I've followed some tutorials and have undervolted my 5800X CPU with great success. I now run 72C peak in most cases, including CineBench or 3D Mark. Unless there is a specific core in there overheating on its own (which might not even make sense, I'm still learning), then I think it's safe to say that it's not my CPU causing game reboots. Today I learned for a fact that it's not my GPU. I had my own 5700XT that I put in there after I spec'd my Bolt X from DS. It was already a year old at that point and was a possible defective unit. So today, I bought and installed a 3070ti using DDU/Safe Mode. NO LUCK. I lasted about 14 minutes in Cyberpunk before the system reboot again. As I type this, I'n performing a "Windows Memory Diagnostic Tool" test to possibly rule out my RAM. I'm starting to run out of options at this point... |
|
|
Stage 1: 1/8/21 | Stage 2: 2/23/21 | Stage 3: 2/25/21 | Stage 4: 2/26/2021 | Stage 5: 3/9/2021 | Stage 6: 3/9/2021 | Stage 7: 3/10/2021 | Shipped: 3/10/2021 | Arrived: 3/11/2021
|
|
|
|
|
Cretae
DS Veteran
Joined: 22 Mar 2010 Online Status: Offline Posts: 7331 |
Quote Reply
Posted: 29 Jul 2021 at 4:13am |
|
|
|
