Hey gang,

I -think- I know the answer but as my last custom build is several years old, I've never dealt with this and the way it's described in the product description and a few comments in other forums leave me unsure.

The ASUS ROG Maximus Z790 Hero, the wifi and bluetooth functionality is built in, yes? No additional network hardware/antenna needed?


Onboard LAN
LAN Chipset     1 x Intel 2.5Gb Ethernet
Max LAN Speed     2.5Gbps
Wireless LAN     Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

Bluetooth     Bluetooth v5.2



Edited by Hort - 30 Jan 2023 at 4:12pm
Back to Top
fwfdfireman View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 18 Aug 2020
Online Status: Offline
Posts: 409 		  Quote fwfdfireman Quote  Post ReplyReply bullet Posted: 30 Jan 2023 at 6:29pm
Yes, no other hardware needed. In your Parts box when your PC arrives there will be an antenna you attach to the rear of the PC where all your USB connections are.
Old Gamers Never Die!
Back to Top
MrCheetah View Drop Down
Groupie
Groupie


Joined: 09 Mar 2021
Online Status: Offline
Posts: 392 		  Quote MrCheetah Quote  Post ReplyReply bullet Posted: 31 Jan 2023 at 10:55am
Elaborating on what @fwfdfireman said...

There are two versions -- I do not know which the Maximus includes:



It has a 180-degree tilt adjustability and a magnetic base



This one require a bit of assembly and it's a little confusing if you only use the Asus documentation. Thankfully, someone posted a simple assembly demo:

Assembling an ASUS 2x2 dual band Wifi Antenna | djp3 (YouTube)

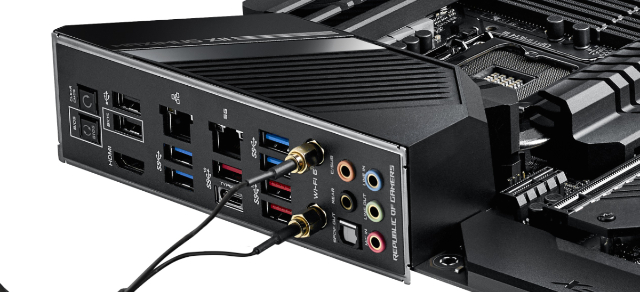

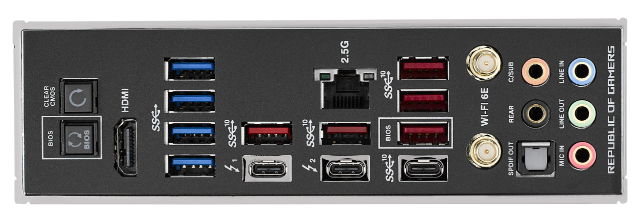

You'll connect the antenna wires to the two coaxial-type connectors between the USB and audio ports. Either wire can go to either connector.

• Ryzen 5600X, ROG Strix B550-I, RX 6900 XT, 32GB Vengeance, 960GB MP510
• be quiet 500DX, i7 11700K, ROG Strix Z590-E, RTX 4080 ProArt + RTX 4070 Ti ProArt, 64GB HyperX Fury, 2TB SN850
Back to Top
Hort View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 10 Jan 2022
Online Status: Offline
Posts: 147 		  Quote Hort Quote  Post ReplyReply bullet Posted: 31 Jan 2023 at 11:55am
Thanks gentlemen! Much appreciated.
Back to Top
Hort View Drop Down
Groupie
Groupie

Email address used to purchase matched with forums account email.

Joined: 10 Jan 2022
Online Status: Offline
Posts: 147 		  Quote Hort Quote  Post ReplyReply bullet Posted: 31 Jan 2023 at 11:57am
Originally posted by MrCheetah



This one require a bit of assembly and it's a little confusing if you only use the Asus documentation. Thankfully, someone posted a simple assembly demo:

Assembling an ASUS 2x2 dual band Wifi Antenna | djp3 (YouTube)

You'll connect the antenna wires to the two coaxial-type connectors between the USB and audio ports. Either wire can go to either connector.



That's what happens when you let a marketing/designer play engineer. ;)
