Will it fit in the top?

Post Date: 2021-12-18
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
RaijinShedo View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 15 Jun 2021
Online Status: Offline
Posts: 20 		  Quote RaijinShedo Quote  Post ReplyReply bullet Topic: Will it fit in the top?
    Posted: 18 Dec 2021 at 12:04am
Lets get straight to the point. Corsair Liquid Cooler 240mm will it fit in the top of the Digital Storm Lynx Level 2 case? Or will it hit the ram sticks?
Back to Top
Cretae View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 22 Mar 2010
Online Status: Offline
Posts: 7331 		  Quote Cretae Quote  Post ReplyReply bullet Posted: 18 Dec 2021 at 4:44am
Go to Desktops and click on Lynx. The top picture shows a 240mm dual AIO mounted at the top. The DS branded AIOs are made at the same factory as the Corsairs.
Back to Top
RaijinShedo View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 15 Jun 2021
Online Status: Offline
Posts: 20 		  Quote RaijinShedo Quote  Post ReplyReply bullet Posted: 18 Dec 2021 at 5:19am
Originally posted by Cretae

Go to Desktops and click on Lynx. The top picture shows a 240mm dual AIO mounted at the top. The DS branded AIOs are made at the same factory as the Corsairs.
Thats got the Radiator for the liquid cooler at the top? the picture looks like the liquid cooler itself is from the front
Back to Top
hoserator View Drop Down
DS Veteran
DS Veteran

We don't need no stinking "Avatars" !
Email address used to purchase matched with forums account email.

Joined: 08 Oct 2014
Online Status: Offline
Posts: 7966 		  Quote hoserator Quote  Post ReplyReply bullet Posted: 18 Dec 2021 at 6:43am
Yes, the radiator appears to be on the front and it sure looks tight up there for one! That said, even if it fits, it will be drawing warm air from inside the case, lowering its efficiency. As installed in the front, it is drawing air from outside the case which will be relatively cooler.
I guess the best answer will be given by DS.
Why do you want it on top?
Back to Top
RaijinShedo View Drop Down
Newbie
Newbie

Email address used to purchase matched with forums account email.

Joined: 15 Jun 2021
Online Status: Offline
Posts: 20 		  Quote RaijinShedo Quote  Post ReplyReply bullet Posted: 18 Dec 2021 at 12:00pm
Originally posted by hoserator

Yes, the radiator appears to be on the front and it sure looks tight up there for one! That said, even if it fits, it will be drawing warm air from inside the case, lowering its efficiency. As installed in the front, it is drawing air from outside the case which will be relatively cooler.
I guess the best answer will be given by DS.
Why do you want it on top?
because I know it has space for fans on the top and since I wanted to switch to liquid cooled I didn't wanna have to remove the front fans and then have to buy the 240mm fans for the top since that is extra money it would have been more cost effective to get the liquid cooler for the open space
Back to Top
MrCheetah View Drop Down
Groupie
Groupie


Joined: 09 Mar 2021
Online Status: Offline
Posts: 392 		  Quote MrCheetah Quote  Post ReplyReply bullet Posted: 18 Dec 2021 at 2:28pm
Originally posted by RaijinShedo

because I know it has space for fans on the top and since I wanted to switch to liquid cooled I didn't wanna have to remove the front fans and then have to buy the 240mm fans for the top since that is extra money

You could move two of the front fans to the top and then install the radiator and its included fans in the front.

Anyway... To address your original questions.
Originally posted by RaijinShedo

Lets get straight to the point. Corsair Liquid Cooler 240mm will it fit in the top of the Digital Storm Lynx Level 2 case? Or will it hit the ram sticks?

I promise nothing because I cannot verify. However, based on the photos in the following article:

Digital Storm Lynx review | Digital Trends

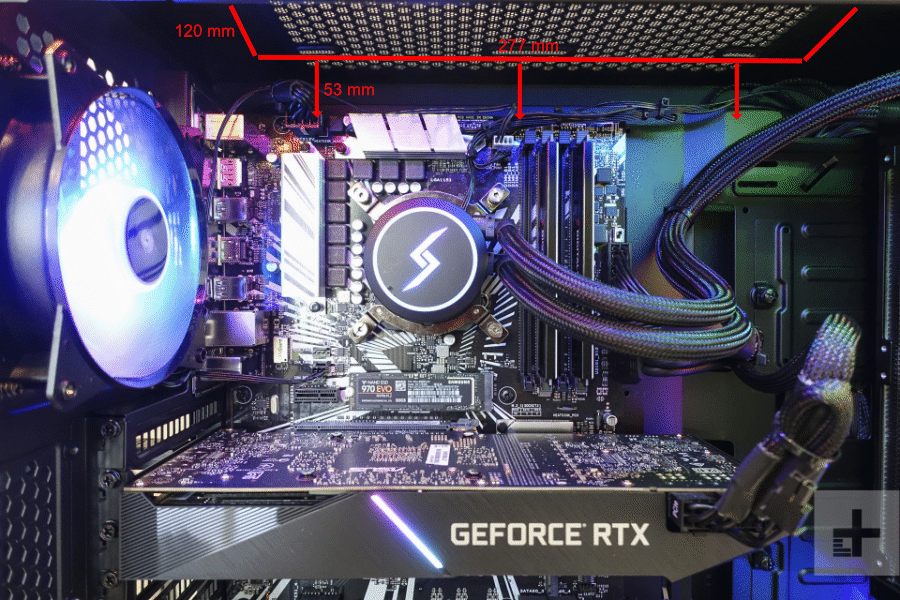

Looking at the mounting slots, including how they are shifted away from the motherboard side, the top panel should accommodate up to two 120mm fans and/or a 240mm radiator. I would recommend at the very least measuring.

L: 277 mm
W: 120 mm
D: ~53 mm (including fans)

To check RAM, motherboard, and cable clearance, measure from the outside edge of the inner slots of the top panel down 53 mm.


(A quick/rough measurement guide)
• Ryzen 5600X, ROG Strix B550-I, RX 6900 XT, 32GB Vengeance, 960GB MP510
• be quiet 500DX, i7 11700K, ROG Strix Z590-E, RTX 4080 ProArt + RTX 4070 Ti ProArt, 64GB HyperX Fury, 2TB SN850
Back to Top
HockeyBuck View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 27 Jul 2012
Online Status: Offline
Posts: 1608 		  Quote HockeyBuck Quote  Post ReplyReply bullet Posted: 18 Dec 2021 at 9:27pm
From the DS Lynx case specs:

Radiator Options
Front - Up to 240mm / Front - Up to 280mm / Front - Up to 360mm

So front rad is the only option.
Back to Top
Cretae View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 22 Mar 2010
Online Status: Offline
Posts: 7331 		  Quote Cretae Quote  Post ReplyReply bullet Posted: 20 Dec 2021 at 4:11am
Back to Top
