Hello Folks!

I am upgrading from 8GB to 16GB RAM on my Bolt 3. How does one remove the heat sink in the center of the MB so there is room to remove/replace the 4 GB sticks? I don't want to accidentally destroy something just to add 8 GB of RAM lol! Your help would be greatly appreciated!
Back to Top
 View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 28 Oct 2014
Online Status: Offline
Posts: 1674 		  Quote  Quote  Post ReplyReply bullet Posted: 27 Jun 2016 at 1:34pm
What kind of heatsink is it? I take it that it is not a water cooler.

There are four screws on that go through the motherboard that retain the heatsink. They are at the corners of the processor. You may need to (probably want to regardless) remove the fan, which is probably held onto by a couple metal clips. These clips maybe tensioned pieces of wire that go into the holes at the corner of the fan.

The other possibility is that it is screwed in from the backplate, but I'm not sure how many recent coolers do it this way.

One thing to make sure is that you have thermal interface material (TIM) to replace the stuff you have on your processor. You'll need to clean off the stuff you currently have on it and reapply the new stuff. You can't reused TIM because you'll create air bubbles that insulate against heat transfer, exactly opposite of what you're trying to accomplish. Look up youtube videos of the application of TIM.
Bolt II Review (and now some modifications!)

Configuring a Computer
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 27 Jun 2016 at 1:48pm
If your heat sink is noctua you maybe able to get away with just removing a fan from the heat sink and not the whole thing.

can you give us more info and/or a pic of the cooler/ram

Nvidia Drivers----AMD Drivers
Back to Top
 View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 28 Oct 2014
Online Status: Offline
Posts: 1674 		  Quote  Quote  Post ReplyReply bullet Posted: 27 Jun 2016 at 2:08pm
With the Bolt 3 it will be a top-down low-profile cooler.
Bolt II Review (and now some modifications!)

Configuring a Computer
Back to Top
teimpdjim View Drop Down
Newbie
Newbie


Joined: 27 Jun 2016
Online Status: Offline
Posts: 4 		  Quote teimpdjim Quote  Post ReplyReply bullet Posted: 27 Jun 2016 at 3:08pm
Is the TIM material a putty, tape, or like an insulated sheet?
Back to Top
DST4ME View Drop Down
DS ELITE
DS ELITE

Email address used to purchase matched with forums account email.

Joined: 14 Apr 2008
Online Status: Offline
Posts: 36758 		  Quote DST4ME Quote  Post ReplyReply bullet Posted: 27 Jun 2016 at 3:12pm
Its a paste like stuff most times: have a look here and here

Learn what to do and what not to do from those videos they are just there for a basic idea and not the exact correct way.

is this what you have?







IF yes then:








Edited by DST4ME - 27 Jun 2016 at 3:34pm

Nvidia Drivers----AMD Drivers
Back to Top
 View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 28 Oct 2014
Online Status: Offline
Posts: 1674 		  Quote  Quote  Post ReplyReply bullet Posted: 27 Jun 2016 at 4:46pm
If there is a water cooler, it shouldn't require removal of the cooler to get access to the RAM. At that point, all you would need to do is press on the tabs on the side of the memory to pop out the module.
Bolt II Review (and now some modifications!)

Configuring a Computer
Back to Top
bprat22 View Drop Down
DS ELITE
DS ELITE

DigitalStorm East -- (Unofficially!)
Email address used to purchase matched with forums account email.

Joined: 08 Jun 2011
Online Status: Offline
Posts: 20391 		  Quote bprat22 Quote  Post ReplyReply bullet Posted: 27 Jun 2016 at 5:07pm
The OP probably means the Zalman air cooler. That would overhang the ram. Not sure the model they're now using, but most unloosen with a couple of screws.
Back to Top
teimpdjim View Drop Down
Newbie
Newbie


Joined: 27 Jun 2016
Online Status: Offline
Posts: 4 		  Quote teimpdjim Quote  Post ReplyReply bullet Posted: 27 Jun 2016 at 7:03pm

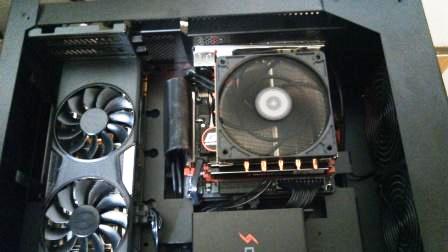

This it:




Edited by teimpdjim - 27 Jun 2016 at 7:11pm
Back to Top
 View Drop Down
DS Veteran
DS Veteran

Email address used to purchase matched with forums account email.

Joined: 28 Oct 2014
Online Status: Offline
Posts: 1674 		  Quote  Quote  Post ReplyReply bullet Posted: 27 Jun 2016 at 10:29pm
Looks like the Scythe Big Shuriken 2. So yes, you will need to undo the screws from the back of the motherboard for this. Just reverse the steps for installation.

https://www.bing.com/videos/search?q=scythe+big+shuriken+2+installation&qpvt=scythe+big+shuriken+2+installation
Bolt II Review (and now some modifications!)

Configuring a Computer
Back to Top
teimpdjim View Drop Down
Newbie
Newbie


Joined: 27 Jun 2016
Online Status: Offline
Posts: 4 		  Quote teimpdjim Quote  Post ReplyReply bullet Posted: 28 Jun 2016 at 5:22am
Thank you very much everyone! Have a great week! Big%20Smile
